Walker Z-513-1 Z-Series 1946-48 Chevrolet Radiator

SAME DAY SHIPPING! Order within the next 37 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Centered
Material Type:
Copper
Finish:
Painted
Row Quantity:
4
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
Z-513-1
Transmission Cooler:
Yes
Shroud:
No
Overall Height:
23.88
Overall Width:
20.25
Overall Thickness:
3.25
Inlet Size:
1.50
Core Height:
19.25
Core Width:
20.00
Core Thickness:
2.75
Filler Neck Height:
.88
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting flanges on both sides.

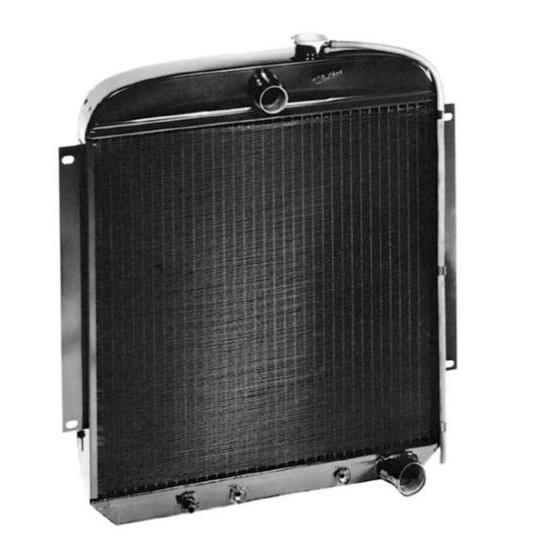

Walker Z-513-1 Z-Series 1946-48 Chevrolet Radiator

Click image to enlarge

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • 4-row copper core w/ brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

820-Z5131 Dimensions - Back (Link)

820-Z5131 Dimensions - Front (Link)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.



Specs


Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

What are the dimentions measuring from flap to flap?

April 10, 2011

What are the dimentions measuring from flap to flap?

Answers

April 13, 2011
Brandon
Great question - here's a couple photos that should help you out with dimensions: http://static.speedwaymotors.com/images/charts/820Z5131.JPG http://static.speedwaymotors.com/images/charts/820Z5131~1.JPG
1 answers

will this work w/air conditioner BBC

cb
May 26, 2011

will this work w/air conditioner BBC

Answers

June 02, 2011
John
This is Walkers 4 core “Z” series radiator and designed for use with big blocks, blown engines, and high compression engines. It would be the candidate for A/C and we also offer the same radiator with the A/C condenser mounted in front under part number 820ZAZ5131.
