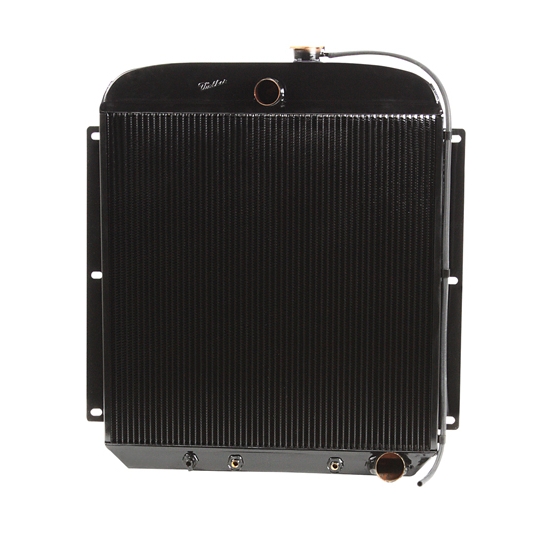

Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser

Price:$812.99
Z-Series 1947-1953 Chevy Pickup Radiator
Price:
$812.99
EA
In Stock
Item #:
820Z5201
Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
Click image to enlarge Click image to enlarge
  • Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
  • Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
  • Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
  • Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
No video at this time.


Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Simple bolt-in install
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Top Inlet:  Center (1-1/2")
  • Bottom Outlet:  Right (1-3/4")
  • Oil Cooler Fittings:  1/8" pipe thread
  • Condenser Fittings:  #6 and #8 O-ring design
  • Condenser Refrigerant:  R-12 or R-134a

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

  • 820Z5201
    MFG. Part #
    Z-520-1
    Overall Width
    20.250" (20 1/4")
    Overall Height
    24.250" (24 1/4")
    Overall Thickness
    3.250" (3 1/4")
    Core Width
    20.000"
    Core Height
    19.690"
    Core Thickness
    2.750" (2 3/4")
    Inlet Location
    Centered
    Filler Neck Height
    0.880"
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    4
    Transmission Cooler
    Yes
    Shroud
    No
    Material Type
    Copper
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
    Notes
    1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting flanges on both sides.
