Walker C-513-1 Cobra 1946-1948 Chevrolet Radiator

SAME DAY SHIPPING! Order within the next 7 hours 16 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Centered
Material Type:
Copper
Finish:
Painted
Row Quantity:
3
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
C-513-1
Transmission Cooler:
Yes
Shroud:
No
Overall Height:
23.88
Overall Width:
20.25
Overall Thickness:
3.13
Inlet Size:
1.50
Core Height:
19.25
Core Width:
20.00
Core Thickness:
2.00
Filler Neck Height:
.88
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting flanges on both sides.

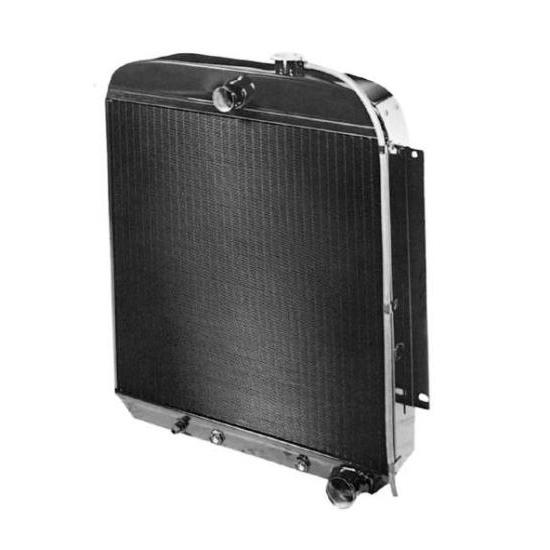

Walker C-513-1 Cobra 1946-1948 Chevrolet Radiator

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Specs


Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

DaveB
Verified Purchaser
Indianapolis, IN, USA

Great Product

September 18, 2014
Purchased the radiator for my 1948 Chevy Fleetline with a SBC. The radiator bolted right into the factory mounting frame. A very nice high quality radiator!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 2 answers

2 answers

Does this radiator come without the transmission oil cooler. I have a 48 fleetline and it is standard.

israel
houston,tx
June 11, 2011

Does this radiator come without the transmission oil cooler. I have a 48 fleetline and it is standard.

Answers

September 30, 2014
DaveB
This particular radiator comes without the actual transmission cooler. It is, however, "transmission oil cooler ready" and can be hooked up easily.
June 13, 2011
Jason
Sorry, we only offer with oil cooler. Cooler can be pluged off if not needed.
Page 1 of 1
