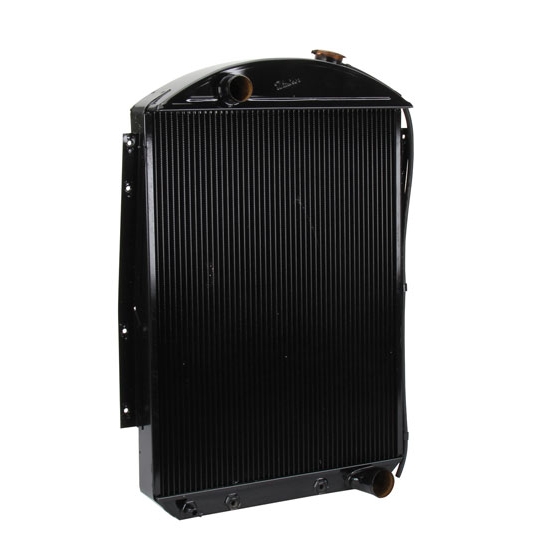

Walker Cobra 1938 Chevrolet Radiator

Price:$619.99
Cobra Series '38 Chevrolet Radiator
Price:
$619.99
EA
In Stock
Item #:
820C5021

(0 Rating)
Click image to enlarge Click image to enlarge
No video at this time.

  • 820C5021
    MFG. Part #
    C-502-1
    Core Thickness
    2.000"
    Radiator Style
    Single Pass
    Inlet Location
    Centered
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Row Quantity
    Three
    Tube Size
    0.500" (1/2")
    Tube Style
    Downflow
    Transmission Cooler
    Yes
    Shroud
    No
    Material Type
    Copper
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.
