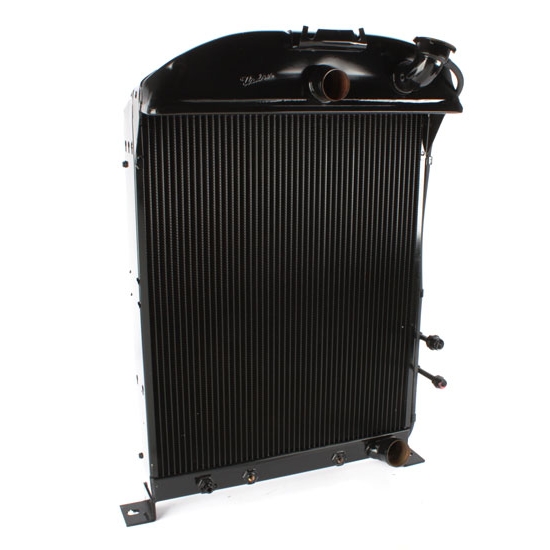

Garage Sale - Walker Cobra 1934 Street Beast Radiator w/ A/C Condenser

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Centered
Material Type:
Copper
Finish:
Painted
Row Quantity:
3
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
Transmission Cooler:
Yes
Shroud:
No
Garage Sale:
Yes
Overall Height:
27.38
Overall Width:
17.38
Overall Thickness:
7.38
Inlet Size:
1.50
Core Height:
20.38
Core Width:
17.00
Core Thickness:
2.00
Filler Neck Height:
2.38
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.68" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Garage Sale - Walker Cobra 1934 Street Beast Radiator w/ A/C Condenser
Garage Sale - Walker Cobra 1934 Street Beast Radiator w/ A/C Condenser
Garage Sale - Walker Cobra 1934 Street Beast Radiator w/ A/C Condenser
Garage Sale - Walker Cobra 1934 Street Beast Radiator w/ A/C Condenser

Click image to enlarge

Please NOTE the following about this product:

  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit into your '34 Street Beast Coupe or Cabriolet grille shell and includes heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install

Ford Chassis W/ Chevy Engine Application Chart (GIF)



Clearance!



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.
