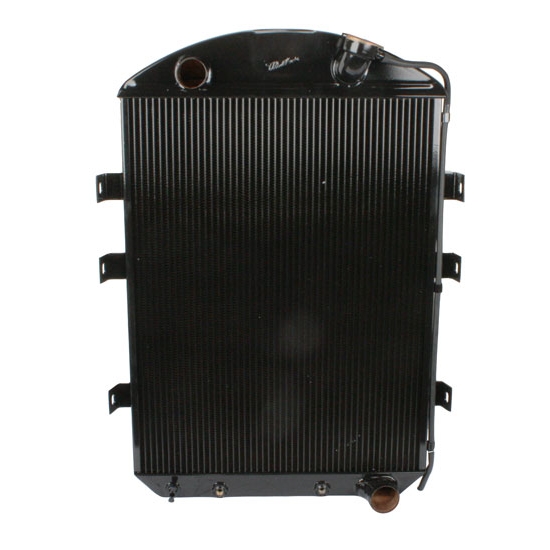

Walker C-510-1 Cobra 1933 Chevrolet Master Radiator

SAME DAY SHIPPING! Order within the next 12 hours 6 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Upper Left
Material Type:
Copper
Finish:
Painted
Row Quantity:
3
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
C-510-1
Transmission Cooler:
Yes
Shroud:
No
Garage Sale:
No
Overall Height:
26.50
Overall Width:
17.13
Overall Thickness:
4.25
Inlet Size:
1.50
Core Height:
21.68
Core Width:
17.00
Core Thickness:
2.00
Filler Neck Height:
2.38
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain.
Walker C-510-1 Cobra 1933 Chevrolet Master Radiator
Walker C-510-1 Cobra 1933 Chevrolet Master Radiator
Walker C-510-1 Cobra 1933 Chevrolet Master Radiator
Walker C-510-1 Cobra 1933 Chevrolet Master Radiator
Walker C-510-1 Cobra 1933 Chevrolet Master Radiator

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Use Walker Fans Shroud Style B

Specs


Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.
