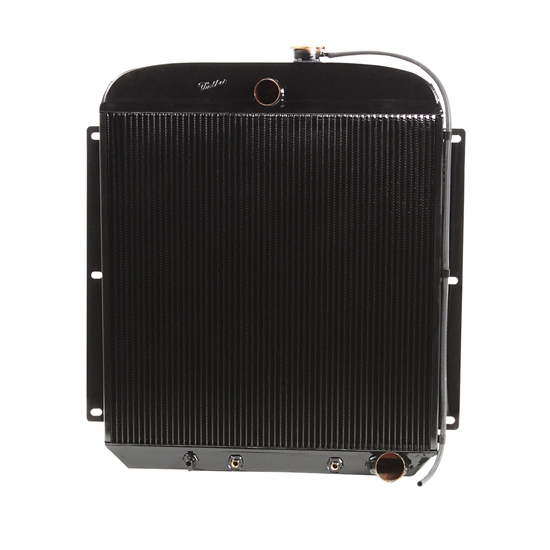

Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Centered
Material Type:
Copper
Finish:
Painted
Row Quantity:
4
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
Z-520-1
Transmission Cooler:
Yes
Shroud:
No
Garage Sale:
No
Overall Height:
24.25
Overall Width:
20.25
Overall Thickness:
3.25
Inlet Size:
1.50
Core Height:
19.69
Core Width:
20.00
Core Thickness:
2.75
Tube Size:
1.00
Filler Neck Height:
.88
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting flanges on both sides.
Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser
Walker Z-520-1 1947-1953 Chevy Pickup Radiator w/o A/C Condenser

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Simple bolt-in install
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Top Inlet:  Center (1-1/2")
  • Bottom Outlet:  Right (1-3/4")
  • Oil Cooler Fittings:  1/8" pipe thread
  • Condenser Fittings:  #6 and #8 O-ring design
  • Condenser Refrigerant:  R-12 or R-134a

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

I need a radiator for my 1950 Chevy 2 door sedan. Will this fit? I am having a hard time finding one on your site.

June 20, 2011

I need a radiator for my 1950 Chevy 2 door sedan. Will this fit? I am having a hard time finding one on your site.

Answers

June 22, 2011
John
This radiator is for the 47-53 Chevy pickup and has dimensions of 18 ¼ wide and 27 ¼ tall plus the fill neck and the brackets on the side and without modification of an existing radiator support would not be a direct fit to the cars of the same vintage. Walker does show one in their older catalog but not one that we carry or offer. What we can offer is a radiator with superior cooling in an aluminum radiator under part number 10680139N. :This is an Afco radiator and the upper neck would be in the center of the tank and the lower neck would be on the right or passenger side. Overall height is 24” and width is 22 ¾”.
Page 1 of 1
