Vega Pitman Arm - Tapered for Tie Rod

SAME DAY SHIPPING! Order within the next 14 hours 39 minutes and receive same day shipping

Vega Pitman Arm - Tapered for Tie Rod
Vega Pitman Arm - Tapered for Tie Rod
Vega Pitman Arm - Tapered for Tie Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

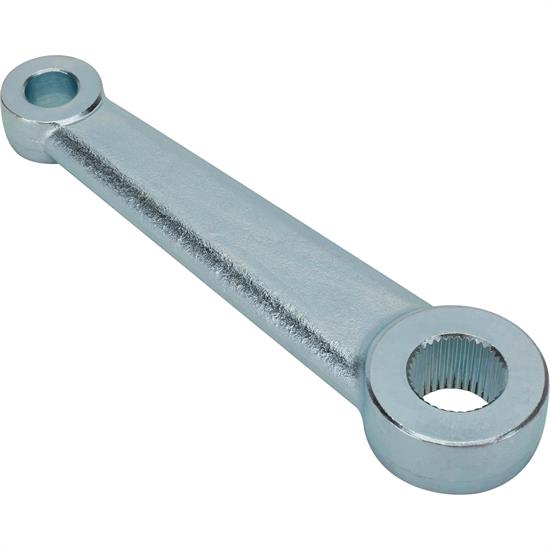

These all new reproduction pitman arms feature a non-offset design, a double tapered "Ford" tie rod end hole (lets you attach the drag link on the top or on the bottom), and comes in gleaming stainless steel or plain steel. Perfect for a repro Vega steering box.

Item Details

Tapered for tie rod end.

Specs

  • Length center eye to center eye is 6-1/4"
  • Overall length is 7-3/4"
  • 5.5" inside length eye to eye
  • 1" spline diameter
  • 0.60" diameter tapered end

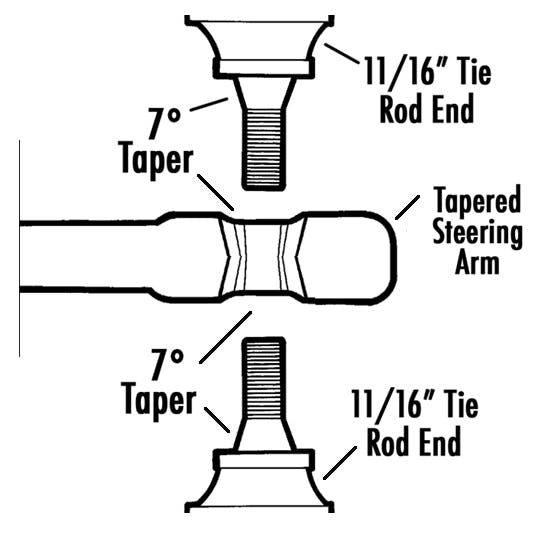

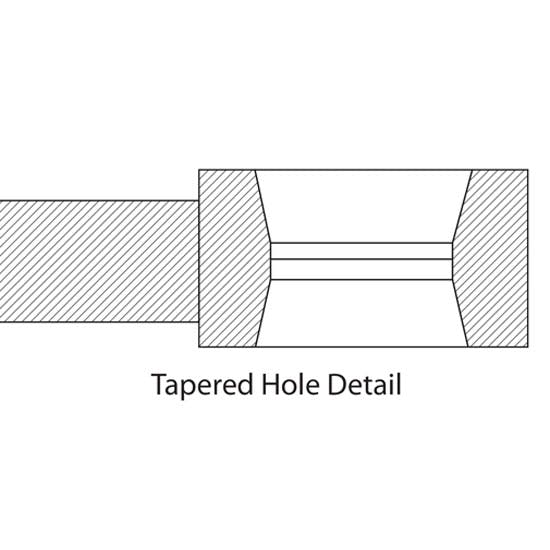

  • Tie rod end is tapered on both sides

Customer Reviews

Rated 4.5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

rough rider
Verified Purchaser
Elma ny

Perfect,That says it All

June 20, 2015
Goes right on no fitting required!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

bobby
Verified Purchaser
gainesville fl.

nice part

May 12, 2015
perfect fit
Pros:
  • Just what I wanted
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

RYK50GASSER
Verified Purchaser
WASHINTON STATE

DOESN'T REALLY NEED TO BE CHROMED

April 05, 2015
I WILL PROBABLY HAVE TO MAKE MY OWN FOR MY GASSER, NEEDS TO BE DROPPED (BENT) TO FIT UNDER ENGINE OIL PAN.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

twofords
Verified Purchaser
Edison NJ

Great part well made

June 21, 2011
Installed in a 32 Ford 5 W
Pros:
  • Look and fit good matches
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

will this pitman arm fit astock 47 super deluxe about your vega pitman arm p#702-2924 my spline is a 1 inch spline but I have 28 splines with 4 bigger indexing splines. looking at your pic there isn't any indexing splines will your pitman arm still fit ?

19478ba
east coast nh
May 07, 2014

will this pitman arm fit astock 47 super deluxe about your vega pitman arm p#702-2924 my spline is a 1 inch spline but I have 28 splines with 4 bigger indexing splines. looking at your pic there isn't any indexing splines will your pitman arm still fit ?

Answers

May 08, 2014
EricM
Most likely this pitman arm for the Vega box will not work on your 47 Deluxe. The splined opening is called 1” but the Vega box is tapered from .997 at the top down to .934 and normally the arm will not go on all the way. The 4 master flats you have should not be an issue and with the new arm it can be clocked exactly as you want it.
1 answers

Do You know the spline count or how many teeth it has ?

Dean
United States
December 27, 2011

Do You know the spline count or how many teeth it has ?

Answers

December 28, 2011
Jason
LENGTH CENTER EYE TO CENTER EYE IS 6 1/4" OVER ALL LENGTH IS 7 3/4" 5.5" INSIDE LENGTH EYE TO EYE 1" SPLINE DIA 0.60" DIA TAPERED END TIE ROD END IS DOUBLE TAPERED (TAPERED ON BOTH SIDES) This is 36 spline
1 answers

could you tell me the distance between the centers please and the size of the holes thank you Harry

Beemergb
Germany
March 20, 2011

could you tell me the distance between the centers please and the size of the holes thank you Harry

Answers

March 21, 2011
Tech Support
* Length center eye to center eye is 6-1/4" * Overall length is 7-3/4" * 5.5" inside length eye to eye * 1" spline diameter * 0.60" diameter tapered end * Tie rod end is tapered on both sides
