Vacuum and Brake Booster Port

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Finish:
Polished
Material Type:
Stainless Steel
Thread Pitch:
3/8" NPT
Outlet Fitting:
1/8" NPT
Overall Length:
1.21
Thread Length:
.71
Notes
Top is 6 sided with ports 60 deg. apart, which makes a "V" shape. Includes fittings for 1/4" and 3/8" hose.

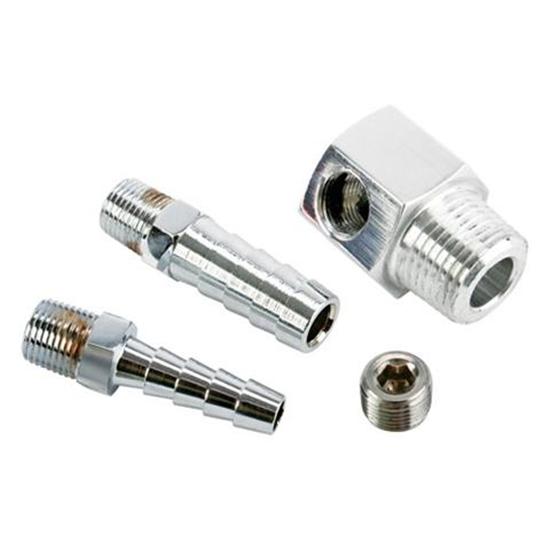

Vacuum and Brake Booster Port

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This nifty 3/8" npt aluminum fitting screws into the intake manifold behind the carburetor and has two 1/8" npt ports. It includes fittings that accept 1/4" hose and 3/8" hose. A 1/8" npt port is also included.

Customer Reviews

Rated 4.4 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
5
4 Stars
1
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Fatherchurch
Verified Purchaser
Colorado Springs, Co

exactly what i was looking for

July 13, 2015
small out of the way, makes the engine look cleaner.
Pros:
  • Low Profile Chrome
Cons:
  • No Compaints
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

LarsMan
Verified Purchaser
Eau Claire, WI, USA

Works great. Thanks for the catalog.Will

February 15, 2015
Great product. Your catalog is like no other. It has and shows some products that I will need to order.. Fantastic FAST service....
Pros:
  • Fast service
Cons:
  • absolutely none....
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

HotRodTroy1
Verified Purchaser
Louisville KY. U.S A.

Quality stuff

February 14, 2015
Nice heavy beefy material. Did exactly what I needed. 100% satisfied!
Pros:
  • fit great. works great!
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

WOODY1971
Verified Purchaser

LIKE THE EXTRA PORT

October 10, 2014
THE OPTION OF ANOTHER VAC PORT IS GREAT FOR CLEANING UP THE ENGINE COMPARTMENT. LOOKS AND WORKS GREAT.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Swerve11
Verified Purchaser
Detroit, MI, USA

product is needed with air gap intake

August 25, 2014
Picture shows ports one hex away from each other and I got product and ports are right next to each other, would work better if ports were one hex apart for my application .. I am running a brake booster and automatic trans vacuum..
Pros:
  • Small
Cons:
  • ports to close together
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Swerve11- Speedway Motors Customer Service team has informed the QC department about this matter and are working to resolve the issue. Thank you for taking the time to review our product, and we apologize for any inconvenience this may have caused.
D J
Verified Purchaser
Tulsa, Ok

Very good all it says it is & super fini

August 04, 2012
Great quality and finish
Pros:
  • Quality Construction
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bloody Fingers
Verified Purchaser
Nevada

Great item for confined area.

September 10, 2010
I used for tranny vacuum and brake pod.
Pros:
  • Just what I needed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 6 answers

4 answers

how many NPT ports hi my question is how many npt ports this part has, because i need 3 for my 66 impala.

Laidbackjoop
The Netherlands
July 22, 2014

how many NPT ports hi my question is how many npt ports this part has, because i need 3 for my 66 impala.

Answers

February 16, 2015
LarsMan
This product has TWO Ports to hook up your vacuum needs. I have a Ford 289 and use for my automatic transmission and my (now) power brakes. It is 5 sided and only uses 2 . This vacuum fitting can be drilled and threaded to make additional ports. You just would need a drill, drill bit, and a 3/8 NPT. I may do this so that I can run a mounted vacuum gauge or plug it and use it when I need to for carb, tuning. *** IF you ever have a question about a product you can go on line and ask or even better call 1-800-979-0122 .....and keep in mind I DON'T think ALL of the products they have can be found in their catalog. They have so many things..... LIKE THIS VACUUM FITTING I DON'T THINK IS IN THE CATALOG BUT IS ON THE WEB SITE... YOU have to remember SPEEDWAY IS Americas OLDEST SPEED SHOP..... meaning I don't think they got that way by not having more products for people like us.... THEY KNOW THEIR BUSINESS....
February 15, 2015
HotRodTroy1
Only has 2 ports
July 25, 2014
Gus195
It has one inlet on the bottom and 2 outlets @ the top.
July 22, 2014
EricM
This fitting has two 1/8" NPT ports.
2 answers

I need to know if this fitting works on a Edelbrock 600 carb for the brake vacuum at the back of the carb.

August 28, 2011

I need to know if this fitting works on a Edelbrock 600 carb for the brake vacuum at the back of the carb.

Answers

February 15, 2015
HotRodTroy1
Yes. Fits with plenty of room to spare!
August 30, 2011
John
This fitting is not designed to be installed in the back of the Edelbrock carburetor and should be installed in the intake manifold behind the carburetor to achieve full manifold vacuum for the power brake booster.
Page 1 of 1
