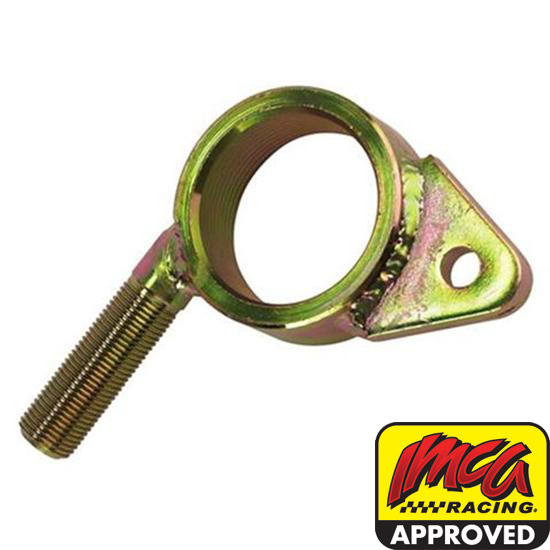

Upper Ball Joint Collar Ring, Speedway/Jet/DW9

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Thread Pitch:
5/8-18 Right Hand
Overall Thickness:
1.00
Inside Diameter:
1.83
Outside Diameter:
2.37
Thread Length:
1.82
Upper Ball Joint Collar Ring, Speedway/Jet/DW9

Click image to enlarge

Details

Reviews (1)

Q & A (3)

What's in the Box

Info

Adjustable ball joint holder for A-arms accepts Moog K772 style ball joints. Stud has 5/8"-18 threads. Tab is 3/8" thick.

For Speedway, Jet and DW9.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

crowdpleazer
Verified Purchaser
Verified Reviewer
wv

good

March 01, 2016
the weld had some lumps big enough to not let the clevis go into place. was easily fixed with a grinder and since has been working fine.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

What is the thread pitch of the stud?

New Albany Indiana
February 22, 2011

What is the thread pitch of the stud?

Answers

February 25, 2011
Jason R.
This is a 5/8"-18 stud for use with our swedge tubes.
1 answers

Is this a straight collar or an angled collar?

Racer 38
October 17, 2015

Is this a straight collar or an angled collar?

Answers

October 20, 2015
Eric
Expert
These collars are straight.
1 answers

Will these collars accept howe screw in type ball joints using on a DW8 Dirtworks.

Bobby
Jackson, TN.
May 23, 2016

Will these collars accept howe screw in type ball joints using on a DW8 Dirtworks.

Answers

May 24, 2016
Eric
Expert
Yes, this ball joint collar ring will accept Howe K772 style upper ball joints. This could be used on a DW8 but typically the DW8 cars use 91034359 and 91034360.
