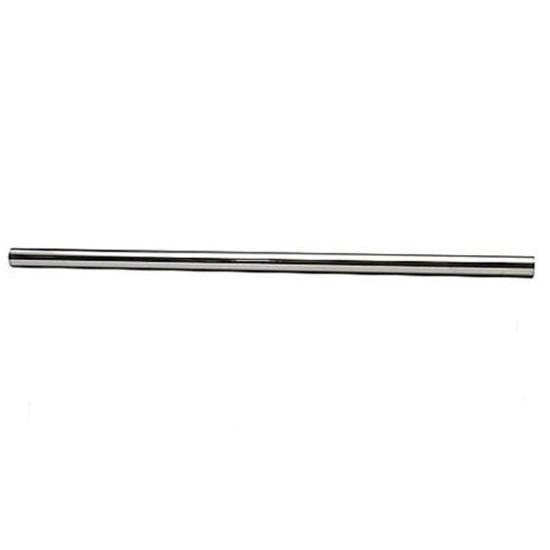

Unpolished Stainless Sleeve for 5/8 Inch-18 Rod Ends
Unpolished Stainless Sleeve for 5/8 Inch-18 Rod Ends

Click image to enlarge

Speeday Motors Logo
X
Unpolished Stainless Sleeve for 5/8 Inch-18 Rod Ends

Details

Reviews

Q & A

What's in the Box

If you are building a hot rod just a little bit different than the next guy, you will probably need a special length tie rod or drag link sleeve. We stock many common and uncommon lengths along with custom, made-to-order lengths. Measurements are in assembled eye-to-eye lengths.

To order:

  1. Use guide below to measure your finished length.
  2. The part number and length you order will be 3" longer than the sleeve you receive. (I.E., if you order a 48" part number, you will receive a 45" long sleeve.) This is the difference in length required to give you the correct finished center-to-center measurement.
  3. All sleeves will have internal RH thread in one end and LH thread in the other.

Measuring Guide for Tie Rod/Drag Link (GIF)



43" Sleeves are clearance priced

Item Details

43" Sleeves are clearance priced
