Universal Tilt with Shift Steering Columns

SAME DAY SHIPPING! Order within the next 11 hours 39 minutes and receive same day shipping

Universal Tilt with Shift Steering Columns

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

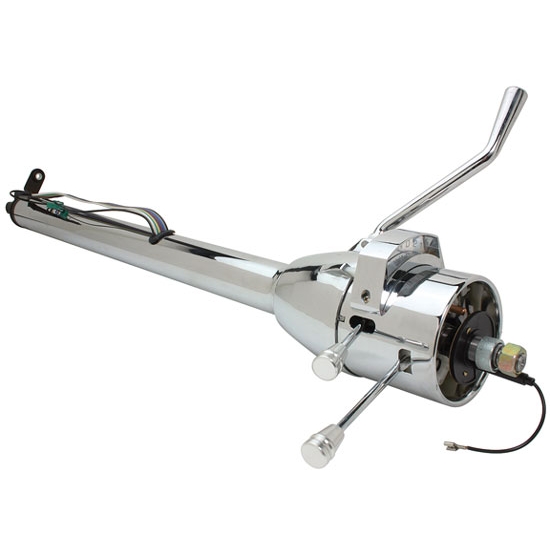

These universal 5-way adjustable tilt steering columns have all the features you are looking for, but at a cost you can afford. They accept a 1" DD U-joint and the common '69-'94 GM steering wheels or adapters. The wiring uses the GM 4-1/4" connector. Uses a 2" hole column drop.

These shifter columns include the shift indicator and a straight and offset shifter arm. Works with 3 or 4 speed automatic transmissions.

These do not have the 4 way flasher button.

Notes

Steering columns are measured from the steering wheel base to the end of the shaft.

Customer Reviews

This product has no reviews.

Product Q&A

6 questions : 6 answers

1 answers

1978chev 4speed auto ignition key on column key locks steering and shift linkage is this unit compatable to my existing unit? reason for changing is old unit is 3speed and i installed 4speed also would like more space between steering wheel and seat and i

bob
middletown ny
March 09, 2011

1978chev 4speed auto ignition key on column key locks steering and shift linkage is this unit compatable to my existing unit? reason for changing is old unit is 3speed and i installed 4speed also would like more space between steering wheel and seat and i

Answers

March 14, 2011
Tech Support
These accept a 1" DD U-joint and the common '69-'94 GM steering wheels or adapters. The wiring uses the GM 4-1/4" connector. Uses a 2" hole column drop. If you match the criteria, then this should work for you. This product is from Classic Performance Products.
1 answers

Will this work on my '56 Chevy pickup? I currently have a Genie floor shifter (transmission is turbo 350)

Canyon Country Ca.
April 20, 2011

Will this work on my '56 Chevy pickup? I currently have a Genie floor shifter (transmission is turbo 350)

Answers

April 22, 2011
Craig
That steering column would work in your 56 pickup. You would want to check the length you need to fit you and make a shift linkage to go from the column to the transmission. That column takes a 2" dia column drop to mount the column to the dash.
1 answers

What provision do these columns have for neutral safety and back up light switches?

September 29, 2011

What provision do these columns have for neutral safety and back up light switches?

Answers

September 30, 2011
Zach
Speedway part number 91032453. These steering columns do not have a neutral safety switch, or reverse light switch built into them. That would be something that you would have to modify the column to accept, or make provisions on the linkage.
1 answers

Is the length measured from tip of spline to tip of spline or is it the length of the housing?

George
Running Springs, CA
April 25, 2011

Is the length measured from tip of spline to tip of spline or is it the length of the housing?

Answers

May 03, 2011
Nick
Steering columns are measured from the steering wheel base to the end of the shaft.
1 answers

How do I determine which length column I need for my 79 Dodge truck? Thanks Herman N.

Herm
Abilene Tx.
April 19, 2011

How do I determine which length column I need for my 79 Dodge truck? Thanks Herman N.

Answers

April 21, 2011
Tech Support
To decide your column length, one way would be to position a steering wheel where you want it, and measure from the base of the steering wheel, (where it bolts to your column) to the steering shaft on the outside of the firewall.
1 answers

I HAVE A 1958 3100 CHEVY P/U, AND WANTED KNOW IF THIS COLUMN COULD BE INSTALLED IN EARLY MODEL TRUCK.

April 20, 2011

I HAVE A 1958 3100 CHEVY P/U, AND WANTED KNOW IF THIS COLUMN COULD BE INSTALLED IN EARLY MODEL TRUCK.

Answers

April 22, 2011
Clark
These columns can be installed in just about any car or truck. The details will vary from vehicle to vehicle, and some fabrication would be required.
