Universal Seat Mounting Frame, Slider and Mounts

SAME DAY SHIPPING! Order within the next 4 hours 27 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
7.00
Overall Width:
15.50
Overall Length:
19.00
Sold in Quantity:
Kit
Finish:
Painted
Garage Sale:
No
Notes
The seat sliders adjust 7". One kit does one seat.

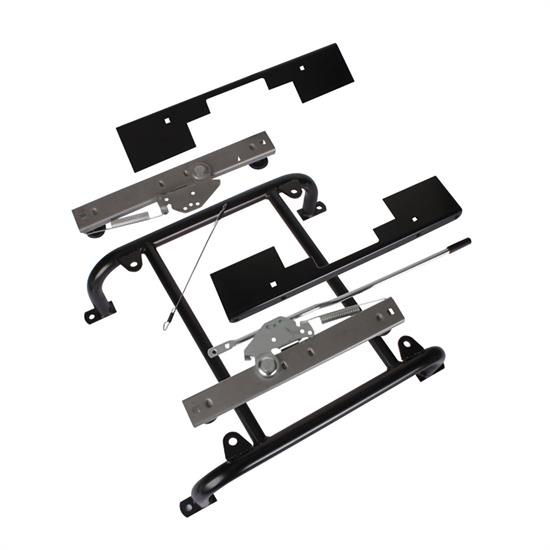

Universal Seat Mounting Frame, Slider and Mounts

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

These universal seat components will allow you to install bucket seats in any car. Since every application is different, some modification may be required.

  • 7" overall assembled height
  • 15-1/2" wide
  • 17-1/2" long
  • 7” front-to-rear adjustment

NOTE: Kit mounts 1 seat. If mounting 2 bucket seats or 1 bench seat, 2 kits would be required.

910-70024 Instructions (PDF)

Customer Reviews

Rated 4.3 out of 5 by 17 reviewers.
RATING BREAKDOWN
17 reviews
5 Stars
8
4 Stars
7
3 Stars
1
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Bluize3
Kappa, IL 61738, USA
Product Rating

Not what i needed for my application

November 20, 2012
I was told that i would have to use this kit to install the Scat Procar Sportsman 1605 in my 64 Nova. The conversion kit not only made the seat sit too high but left no room to get in and out of car. Seemed there were lots of extra parts that were not needed and there was not any instructions for assembly. At 5'8" tall my head was into the head liner while sitting in the seat. I pulled the original hardware out that came with the seat and was able to use it instead with minimal fabrication. ( made angle brackets and drilled holes to match seat structure out of old bed frame rails i keeep around the shop for purposes like this.) Original hardware that comes with the seat is much better for the Nova. Making 4 brackets for each seat is much easier than dealing with the after market kit. the seat slide assembly works great and the install was a breeze after figuring out the best method. Seat # 2 went in in an hour.
Pros:
  • this kit would prob work good with a mustang
  • applications. good craftsmanship on the kit.
  • where the seats sit low anyway
  • i would recommend it for low sitting seat
Cons:
  • sits way too high for the 64 nova
  • aftermarket install kit not needed.
  • because it isn't needed in my application.
  • only reason i don't recommend this product is
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Thom
Verified Purchaser
Portland, Or
Product Rating

Too tall, but good value

September 07, 2012
This is a simple design that solves multiple mounting issues. The mount was too tall for my application, but the value made it worth my money. To buy the 3 parts individually would cost more than the package deal, and heck, the parts I didn't use will probably be used on another project.
Pros:
  • Easy To Install
  • Functional
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Cornbread-red
Verified Purchaser
West Tennessee
Product Rating

Universal Seat mounting frame

April 21, 2012
I initially purchased this mount to use with a bench style seat in my 29A Coupe. I changed my mind and decided to install the bucket seats Speedway offers. Of course the tech advised this wouldn't work I would need to buy another style of mount. No problem, I have this mount ready for return and have mounted the other style and bucket seat. Very knowledgeable sales/tech advised me on what I needed to complete the install. Thanks Speedy!!
Pros:
  • Attractive Design
  • Lightweight
  • Functional
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Roadster Ron
Verified Purchaser
Ontario, Calif.
Product Rating

Top quality product.

January 18, 2012
Used for mounting fiberglass buckets in my 55 Chevy gasser. Some modification required but that's to be expected in a universal component. Fast shipping and a decent price.
Pros:
  • Functional
  • Attractive Design
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jimbob
Roseburg, OR
Product Rating

Universal Seat Mounting Frame, Slider &

January 22, 2010
I put these in my 55 Ford Truck. Mounted a set of buckets. They look and work great. Easy installation too...
Pros:
  • Serves the purpose well
  • Great universal mount
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

T-Bone
Verified Purchaser
Meridian, Id
Product Rating

seat mounts/slides

October 10, 2011
i needed these for a race seat in a 64 nova and had to cut and modify them for this car would be helpful to make them not sit so high for muscle cars.
Pros:
  • Functional
  • Great universal design
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

kwayne32
Verified Purchaser
la place
Product Rating

do not fit low back seat.

May 31, 2012
will not fit some bucket seat like the low back seat,frame to short.
Pros:
  • Lightweight
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Hotrodgary
Verified Purchaser
Flint, MI
Product Rating

Great Universal brackets

September 20, 2010
Great brackets, you can adapt them to just about anything. In my case I shortened the legs to lower my seats down. -Gary Alumbaugh
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Val
Oneonta, NY
Product Rating

nicely built-easily assembled

April 06, 2010
only downfall was there were no assembly instructions included. it took awhile, but i eventually figured the assembly out. great fit for my model a hot rod.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bob the Builder
Colorado
Product Rating

Good kit

May 18, 2010
Mounted these up in a 57 chevy and had to modify the legs to get them installed. Overall, a nice product that works smooth if you don't mind doing some fabrication to get them to fit your application.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

7 questions : 7 answers

Will this fit the Kirkey seat your part number 91070080 ? Thanks!

1 answers
CarterC
NH
February 04, 2015

Will this fit the Kirkey seat your part number 91070080 ? Thanks!

Answers

February 05, 2015
EricM
Yes this seat mounting bracket and sliders can be used on seat number 91070080. You will need to drill mounting holes as needed in the seat and/or brackets to fasten them together.

will this work for my seats I'm looking for something to install 79 corvette seat into a 96 s10

1 answers
firepower
72756
July 20, 2014

will this work for my seats I'm looking for something to install 79 corvette seat into a 96 s10

Answers

July 21, 2014
EricM
You could certainly use this frame and slider kit but it will require some modification/fabrication to be installed.

Will this accept a Sparco Torino 2? Looking to put some Sparcos in my BMW, will this take a Torino 2 seat?

1 answers
beanboy117
Idaho, USA
June 23, 2014

Will this accept a Sparco Torino 2? Looking to put some Sparcos in my BMW, will this take a Torino 2 seat?

Answers

June 23, 2014
EricM
This is a universal item. As such it can fit many applications but may require some fabrication or modification to do so.

I want to use this slider on a bench seat. Can that be done? If so how?

1 answers
March 13, 2011

I want to use this slider on a bench seat. Can that be done? If so how?

Answers

March 21, 2011
John H.
-Frame alone measures 5-1/4" tall, 15-1/2" wide and 17-1/2" long -With the sliders and mounting plates installed it is 7" tall These universal seat components will allow you to install bucket seats in any car. Since every application is different, some modification may be required. NOTE: Kit mounts 1 seat. If mounting 2 bucket seats or 1 bench seat, 2 kits would be required

what is the overall height and width of the slide assembly?

1 answers
Jay
Wahpeton ND
January 06, 2011

what is the overall height and width of the slide assembly?

Answers

January 10, 2011
Jeremy O
Jay, The frame alone measures 5-1/4" tall, 15-1/2" wide and 17-1/2" long. With the sliders and mounting plates installed it is 7" tall. Please feel free to call us at 1-800-979-0122 if you require further assistance.

What is the adjustment "travel?" In other words, how far does the seat move when adjusting from "all the way forward" to "all the way back?"

1 answers
Douglas
San Diego, CA
October 01, 2011

What is the adjustment "travel?" In other words, how far does the seat move when adjusting from "all the way forward" to "all the way back?"

Answers

October 04, 2011
John
These seat sliders have nearly 7” of front to rear adjustment movement.

What is the frame bolt pattern dimensions at the frame base (part that bolts to the floor)? mounting holes length and width please.

1 answers
HotShot
Benton,ar
January 19, 2012

What is the frame bolt pattern dimensions at the frame base (part that bolts to the floor)? mounting holes length and width please.

Answers

January 20, 2012
Jason
The seat frame mounting holes to floor are 18" x 14-1/4" and where seat mounts to frame is 11" x 12-1/8" Overall Height : 7.00 Inches (in) Overall Width : 15.50 Inches (in) Overall Length : 19.00 Inches (in) Notes : The seat sliders adjust 7". One kit does one seat.
Page 1 of 1
