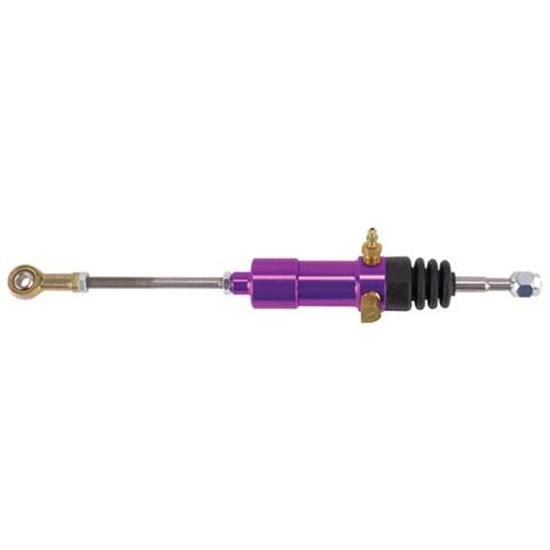

Garage Sale - Universal Pull Type Slave Cylinder, 7/8 Inch Bore

SAME DAY SHIPPING! Order within the next 11 hours 50 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Length:
13.00
Color:
Purple
Sold in Quantity:
Each
Finish:
Anodized
Shaft Diameter:
.38
Extended Length:
11.50
Compressed Length:
10.75
Thread Pitch:
5/16"-24
Threads:
RH Male
Bore Size:
.875
Travel:
1.00
Body Length:
4.09
Notes
3/4" bore M.C. suggested. 3/8"-24 IFF adapter fitting included. Attaches to 3/16" brake line. Fitting can be switched with an AN fitting for use with our braided stainless lines.
Garage Sale - Universal Pull Type Slave Cylinder, 7/8 Inch Bore
Garage Sale - Universal Pull Type Slave Cylinder, 7/8 Inch Bore

Click image to enlarge

Speeday Motors Logo
X
Garage Sale - Universal Pull Type Slave Cylinder, 7/8 Inch Bore

Please NOTE the following about this product:

  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

Universal pull type slave cylinder for clutch use. Features a 7/8" bore, 1" of travel, and a female 1/8" NPT inlet. For most multi-disc clutch set-ups we recommend the use of a 3/4" master cylinder. For Stock and Ram couplers, use a 7/8" master cylinder.

It is supplied with a 90 degree inlet fitting that will accept a typical 3/16" steel brake line. That fitting can be removed and can be replaced with a 1/8 NPT to AN3 or AN4 adapter so that you could use one of our braided stainless lines.

556-NP102U Instructions (PDF)



This cylinder is garage sale priced because it is new old stock.



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Notes

  • Length is retained by a lock nut
  • Bleeder adapter and bleeder are included
  • Cylinder body is 1-7/16" O.D. at end by fittings
  • Cylinder body is 1-3/8" at opposite end of fittings

Specs

  • Overall length is adjustable from 10-3/4" to 11-1/2"
  • Length is retained by a lock nut
  • Both shaft ends are 5/16"-24 fine RH male thread for clevis or rod ends
  • Ram shaft is 3/8" O.D.
  • Cylinder body is 4.09" long
  • Bleeder adapter and bleeder are included
  • 3/8"-24 IFF adapter is included for the line attachment
  • Cylinder body is 1-7/16" O.D. at end by fittings
  • Cylinder body is 1-3/8" at opposite end of fittings
