Universal Lower Leaf Spring Plate

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Overall Thickness:
.37
Finish:
Zinc
Garage Sale:
No
Notes
For 2.50" wide springs.

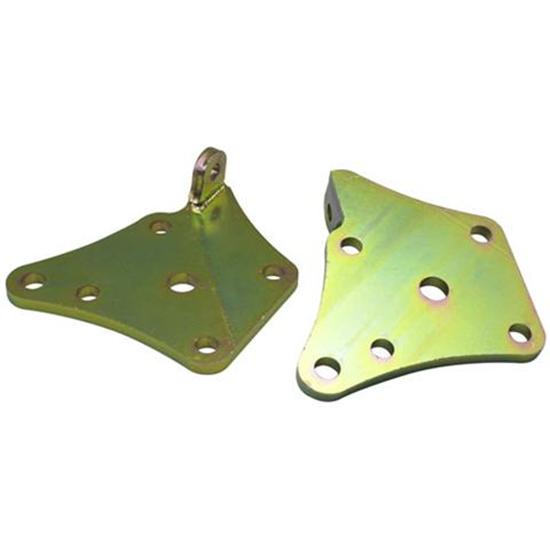

Universal Lower Leaf Spring Plate

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These universal lower leaf spring plates include mounts for shocks and a sway bar. LH and RH.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Madgnome
Eugene, Or
Product Rating

WORK PERFECTLY!

July 30, 2011
Used to install a 9" in a 53 Stude going to Bonneville, matched the U bolts and are well made.
Pros:
  • Fit without altering
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

What are the measurements on the bolt hole pattern?

1 answers
LostFords
N.Mississippi
March 03, 2013

What are the measurements on the bolt hole pattern?

Answers

March 04, 2013
Jason
The universal lower leaf spring plate is 3-9/16" by 3-3/16" center to center for u-bolt holes. Holes are 9/16". The plate is designed for 2.50" wide springs

using these on AMC with the shocks staggered one in front and one behind the axle.. I am trying to visualize if i need two rights two lefts or does it so shock on left is in front of axle shock on right is behind the axle.

1 answers
bondo
Denver, CO, USA
December 24, 2012

using these on AMC with the shocks staggered one in front and one behind the axle.. I am trying to visualize if i need two rights two lefts or does it so shock on left is in front of axle shock on right is behind the axle.

Answers

December 26, 2012
Jason
Rotating the shock plate 180 degrees would put one shock ahead and one behind the axle but one shock would be outside the spring and the other on the inside. Also the sway bar mount would not mate the same location side to side. You may want to consider part number 91720248 to eliminate some potential problems for shock mounting staggered front and rear.

With no instructions in the package, goes a person just guess how these puppies go on? Do the tabs go on the same said as the upper shoke mounts?

1 answers
Dadwood
Houston
February 19, 2011

With no instructions in the package, goes a person just guess how these puppies go on? Do the tabs go on the same said as the upper shoke mounts?

Answers

February 23, 2011
Waymon
These are universal in design leaf spring mounts. That means that there is no set way to install them, they are made this way so that the purchaser can install them in various positions to suit many applications. That is why there are no instructions.

What size axle tube are these intended for? What about u-bolt diameter?

1 answers
Dirt.boy
April 18, 2011

What size axle tube are these intended for? What about u-bolt diameter?

Answers

April 19, 2011
Craig
These lower leaf spring plates part # 91643510 are made to work with a 3" axle tube. The u-bolt diameter is 1/2" which can be drilled out if you need to.
