Seals-It EAS1-05 Universal Inner Axle Seal for 2.5-2.75 Inch Tube

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Inside Diameter:
.875
Notes
Fits axles with tube ID's between 2.500" and 2.750."
Seals-It EAS1-05 Universal Inner Axle Seal for 2.5-2.75 Inch Tube
Product Video
Seals-It EAS1-05 Universal Inner Axle Seal for 2.5-2.75 Inch Tube

Click image to enlarge



Details

Reviews

Q & A

What's in the Box

One size fits all! Fits any inner axle tube with an I.D. between 2-1/2" and 2-3/4". This eliminates ordering the wrong seal and allows you to always have the correct seal on hand. Typical applications* include Ford 9”, Quick change type rears, and 12 bolt GM. All seals are supplied with general installation guidelines.
  • Inner Axle Seal I.D. = 7/8"
  • Axle sizes/Splines:  1-3/16” thru 1-1/2” / 28-31



* Applications are reference only. Seals may be used on any rear end that is within the part number’s dimensional range. Rears can vary within a single model year and within the same model. Measure listed parameters before ordering.

Customer Reviews

Rated 4.2 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
2
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

KOAB
Verified Purchaser
Northlake, TX, USA

AXLE TUBE SEAL

March 14, 2015
PURCHASE THE SAME UNIVERSAL SEAL A FEW YEARS BACK FOR MY IMCA STOCK CAR HOUSING BECAUSE I KEPT HAVING LEAKING ISSUES! THIS SEAL WORKED GREAT THAT'S WHY I BOUGHT ANOTHER ONE FOR MY BRAND NEW CAR FOR 2015
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

racer19
Highland, IL

these are ok

August 30, 2014
I got this seal because it is universal and cheaper, but it was a mess to install because you have to use a bunch of silicone on it. They seem to work ok.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

#85 Race the truck
Verified Purchaser
Snohomish, Wa

Excellent seal for stock rear end

July 09, 2012
Received excellent support from manufacturer. This was a great application for my older 8" Ford rear end. It fit very tight and after changing gears no oil got past the seal as before.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Haywire racing
Verified Purchaser
Graham Washington

Worked perfectly

April 22, 2011
Keeps oil in the rear end, and out of the hub. Works as intended. Inexpensive
Pros:
  • Works well
  • Versatile
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Nickname
Verified Purchaser
TX

Simple but use 'Gear Oil' RTV to seal.

March 18, 2011
Easy to install but requires Gear Oil RTV if using synthetic gear oil and/or friction modifiers.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

how far into the tube does the seal go?

wendells28
September 01, 2014

how far into the tube does the seal go?

Answers

September 02, 2014
EricM
Push the seal into the axle tube so that it is about 1/4" past flush with the end of the tube.
1 answers

Is there a certain way or direction/side that the axle is to be facing when installed ?

HardlyAbleRacing
July 05, 2014

Is there a certain way or direction/side that the axle is to be facing when installed ?

Answers

July 07, 2014
EricM

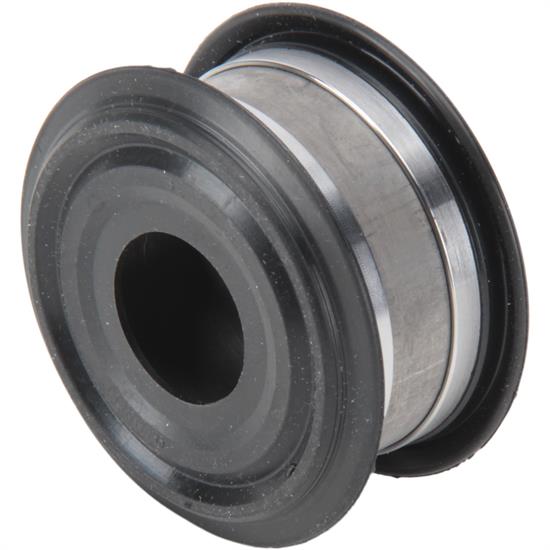

Insert the seal with the dished side (side you can see in the picture) facing toward the center section.
1 answers

on a 12 bolt chevy car rear, can the posi unit with the ring gear be removed and reinstalled if not removing the pinion

ezon
January 21, 2014

on a 12 bolt chevy car rear, can the posi unit with the ring gear be removed and reinstalled if not removing the pinion

Answers

January 22, 2014
Travisp
The carrier unit can be removed without the pinion but if changing the gear ratio the pinion will likely need to be checked for depth in the ring gear and shimmed accordingly. This is critical for longevity of the gear set.
1 answers

can it be install from wheel side

ezon
January 21, 2014

can it be install from wheel side

Answers

January 21, 2014
EricM
No this seal is installed only when the center section is removed from the rear housing and then installed from inside the rear housing.
1 answers

Will 35 spline axles fit?

Dr. Phil
Apopka, Fl.
December 15, 2011

Will 35 spline axles fit?

Answers

December 16, 2011
Jason
This seal fits axles with tube ID's between 2.500" and 2.750."
Page 1 of 1
