Mechanical Speedometer Universal Dash Gauge Harness

SAME DAY SHIPPING! Order within the next 4 hours 36 minutes and receive same day shipping

Specs
Overall Length:
30.00
Sold in Quantity:
Each
MFG. Part #:
7706
Notes
Wires are labeled and includes eyelet crimp connectors and spade connectors.
Mechanical Speedometer Universal Dash Gauge Harness
Mechanical Speedometer Universal Dash Gauge Harness

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

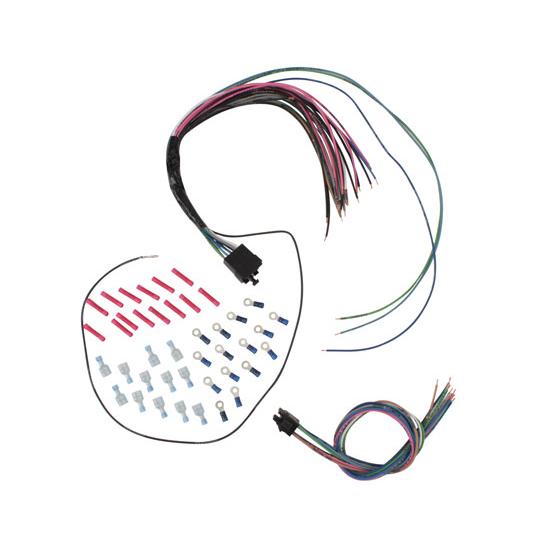

If you want to keep your under-dash area organized or you think that you will need to remove gauges from time to time, then you need to install this universal gauge harness. It will connect to all major brand gauges including Auto Meter and VDO and works with most dash layouts and sizes.

Includes all connections for volt meter, oil pressure, temperature, tachometer, and fuel gauges, plus high beams and turn signals. Plus, the purpose of each wire is printed directly on it for a fool-proof installation.

  • Fits all dash layouts
  • Omega style harness
  • Color coded and labeled for intended circuit
  • Note: excludes Speedo sender wiring

One harness has 9 wires that are 18-1/4" long and the other harness has 26 wires with the longest wire 30-3/4" long .

Notes

Wire Descriptions;
  • White = Tach
  • Green = Water Temp Sender
  • Gray = Dash Lights
  • Medium Blue = Oil Psi Sender
  • Dark Blue = Right Turn Signal Dash Indicator
  • Light Blue = Left Turn Signal Dash Indicator
  • Light Green = Hi-Beam Dash Indicator
  • Tan = Gas Gauge
  • Pink = Ignition Hot

This harness kit is both color coded and labeled for intended circuit. The pink wires are all ignition hot and labeled as such. The portion of the harness that has one pink is for hook up to the vehicle and the other half of the harness has the pink circuit that has the multiple wires to branch off to the individual gauges. Harness in hand has one wire with some white on it but still labeled as ignition hot.

You may also be interested in:

Universal Dash Harness for Mechanical Speedometer
(Part #91064025)


If you want to keep your under-dash area organized or you think that you will need to remove gauges from time to time, then you need to install this universal gauge harness. It will connect to all major brand gauges including Auto Meter and VDO and works with most dash layouts and sizes.

Includes all connections for volt meter, oil pressure, temperature, tachometer, speedometer and fuel gauges, plus high beams and turn signals. For cable drive speedometer only.

Universal Dash Mechanical Speedometer Wiring Instructions (PDF)

Universal Dimmer Switch
(Part #91064054)


Use this universal dimmer switch with our headlight switch. Pigtail connector sold separately.

910-64054 Instructions (PDF)

Split Wire Loom Conduit Tubing, 1/4 Inch Diameter, 20 Ft. Long
(Part #91050025)


This plastic split wire loom allows you to clean up that ugly wiring under the hood for a more professional look. This tubing will group and protect your wires from damage.  Simply lay out and insert wires, which will remain inside even with flex.  Choose from 5 colors to customize your engine bay: black, dark blue, purple, red, or yellow.

  • 20 ft. long
  • 1/4" diameter
  • Plastic split conduit
  • More professional appearance
  • Groups and protects wires against damage
  • Retains wires under flex and adjustment
  • Comes with zip-ties to secure wire loom
  • Choose: black, dark blue, purple, red, or yellow
Universal Headlight Switch With Hi/Low
(Part #91080154)


This headlight switch has four positions. In is off, out one notch is park lights, out another notch is lows beams, and all the way out is high beams. Screw type terminals. 3/8" mounting hole.

910-80154 Instructions (PDF)

Titan Tools 11477 Ratcheting Wire Terminal Crimper
(Part #72811477)

  • Ratcheting mechanism design
  • Adjustable crimping compression
  • Steel jaw
  • Color coded wire sizes
    • Red 22-18AWG-DIN 0.5-1.0mm
    • Blue 16-14AWG-DIN 1.5-2.5mm
    • Yellow 12-10AWG-DIN 4-6mm
Titan Tools 11475 Self Adjusting Wire Stripper
(Part #72811475)

  • Automatically adjusts to strip 24 - 10 AWG wire and cable
  • Crimps 22 -10 AWG insulated and non-insulated wire terminals
  • Crimps 7 - 8mm ignition terminals
  • Wire cutter
  • Comfortable TPR hand grips
