Universal Aluminum Radiator - 27 Inch Tall, Driver Side Outlet

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Overall Height:
27.13
Overall Width:
19.50
Transmission Cooler:
Yes
Tube Style:
Downflow
Sold in Quantity:
Each
Overall Thickness:
3.13
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Right
Inlet Size:
1.50
Outlet Location:
Lower Left
Core Height:
22.25
Core Width:
18.25
Core Thickness:
2.25
Tube Size:
1.00
Filler Neck Height:
1.00
Radiator Style:
Single Pass
Notes
5/16" inverted flare fittings for the transmission cooler.

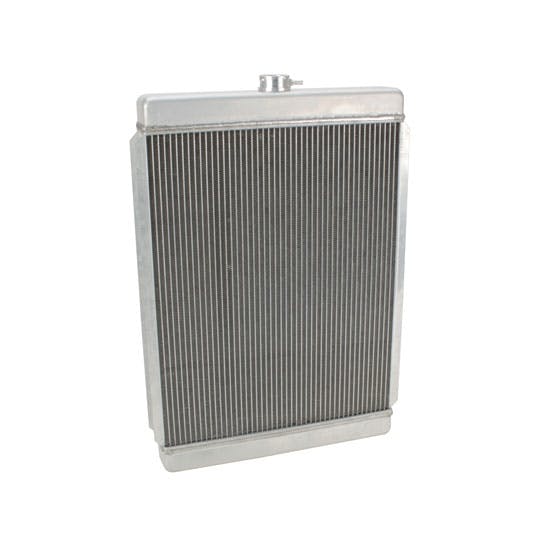

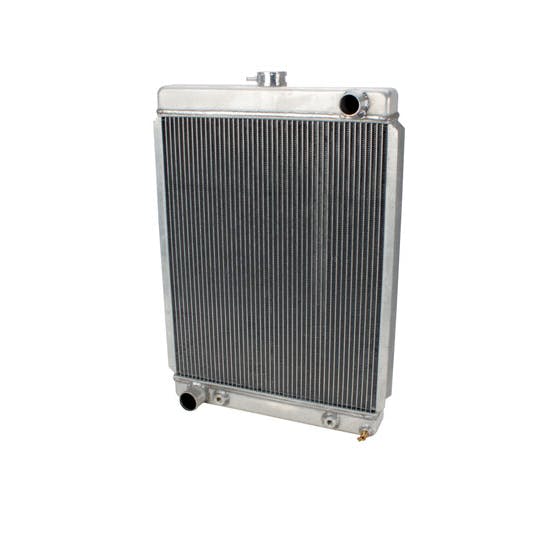

Universal Aluminum Radiator - 27 Inch Tall, Driver Side Outlet
Universal Aluminum Radiator - 27 Inch Tall, Driver Side Outlet
Universal Aluminum Radiator - 27 Inch Tall, Driver Side Outlet

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These downflow aluminum radiators are for you guys that are building something a little different. They work great in many 30s, 40s & 50s medium width nose vehicles (be sure to measure before you order).

  • Built-in 7-plate automatic transmission cooler
  • Centered filler neck w/ hose nipple
  • 2 rows of 1" tubes

Measurements are overall:

  • 19-3/4" wide
  • 27" tall to the top of the tank
  • 28" tall overall (from the bottom to the top of the filler neck)
  • 2-1/4" thick
  • Top neck is 1-1/2" O.D.
  • Lower neck is 1-3/4" O.D.
  • Trans Cooler ports:  5/16" inverted flare
  • Core measures 18” wide x 22-1/4” tall

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Top Neck: Passenger Side
Lower Neck: Driver Side

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Tim
Goodview, Va.

Highly Recommended

October 05, 2010
I have purchased 6 of these to put on antique pulling tractors.They are easy to adapt to the frame work and cool great.
Pros:
  • Great Value
  • Works Great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

In the picture of this radiator there are two metal backets that appear to be used to mount the radiator, are they included?

tom
hohenwald tn
October 22, 2011

In the picture of this radiator there are two metal backets that appear to be used to mount the radiator, are they included?

Answers

October 24, 2011
QC
Yes they are included.
1 answers

is this a two row,three row, four row, and what is the cores measurement 1 inch or 1 1/8

Don
spokane,wa
April 11, 2011

is this a two row,three row, four row, and what is the cores measurement 1 inch or 1 1/8

Answers

April 13, 2011
Tech Support
This radiator, item # 9175160, features 2 rows of 1" tubes.
1 answers

What radiator cap will fit this?

farmall
April 15, 2015

What radiator cap will fit this?

Answers

April 16, 2015
Eric
Expert
A standard radiator cap such as 91015620 will fit this radiator.
