Unisteer 8050330 Steering U-Joint-3/4 Inch Double D to 3/4 Inch Smooth

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

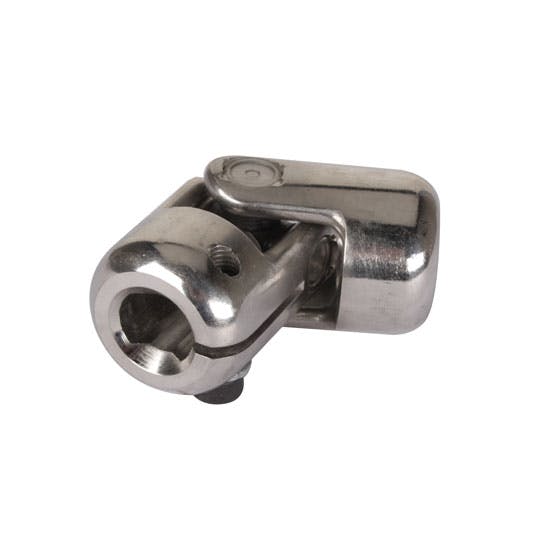

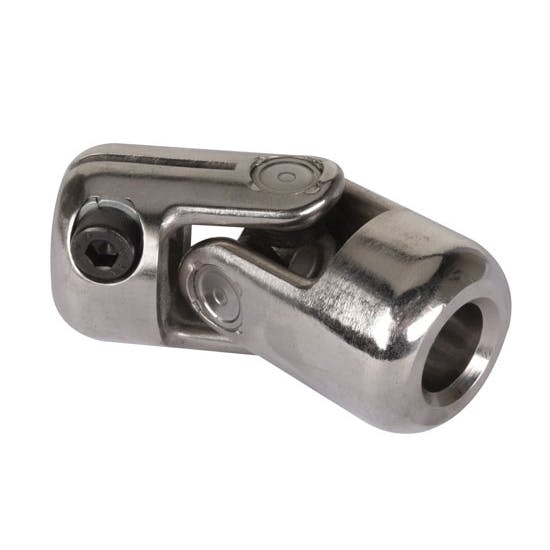

These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inches in length and have an outside diameter of 1.650 inches.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Item Details

Stainless Steel
This u-joint contains a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

You may also be interested in:

Steel Heim Joint Rod Ends for Steering Shaft, 3/4-16 RH Male .757 Hole
                        3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.


Sweet Mfg Steering U-Joint, 3/4 Inch Round to 3/4 Inch Round, Universal


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering u-joints available. Made by Sweet Manufacturing. These steering universal joints have 3/4 weld-on ends.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875" L x 1.375" D

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



Sweet Mfg Steering U-Joint, 3/4 Inch Round to 3/4 Inch DD, Universal


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have a 3/4 round weld-on end.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875" L x 1.375" D
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole
                        3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.

Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth


These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inch in total length and have a 1.650 inch diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Unisteer 8050300 Steering U-Joint, 3/4 Inch Double D to 3/4 Inch DD


These polished stainless steel steering U-joints look great and use a pinch bolt on each end for easy installation.

This particular steering universal joint is made to fit 3/4"DD shafting on both sides. Both sides incorporate the pinch bolt design.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050310 Steering U-Joint-1 Inch Double D to 3/4 Inch Double D


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation.

This is a size that is used on some large GM steering columns. This specific steering universal joint uses a pinch bolt fastener on the 3/4"DD side and a set screw on the 1"DD side, due to the large size

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Fits IDIDIT/Flaming River 1" Double D

Unisteer 8050430 Steering U-Joint-9/16 In-26 Spline to 3/4 Inch Smooth


These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted.

The outside diameter of this steering universal joint is approximately 1.25" and the length is approximately 3.75"

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Unisteer 8050290 Steering U-Joint, 5/8 Inch-36 Spline to 3/4 Inch DD


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length

This universal joints size is 5/8"-36 count spline by 3/4" DD Shaft. It is the common size for the Vega style steering box.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050850 Steering U-Joint, 3/4 Inch 36-Spline to 3/4 In Smooth


These polished stainless steel steering U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted These steering universal joints are 3-3/4 inch in length and are 1.650 inch in outside diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Unisteer 8050230 Steering U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation. These universal joints are 3-3/4 inch in length and have a 1.650 inch outside diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length

This size of spline works with Unisteer's Cross Steer Rack & Pinion, Prostock Rack, and Manual Camaro Rack & Pinion and is also the size of manual Mustang Style Rack & Pinions.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050880 Steering U-Joint, 3/4 Inch-36 Spline to 3/4 Inch DD


These polished stainless steel steering U-joints look great and use a pinch bolt on each end for easy installation.

This particular steering universal joints Size is 3/4"-36 count spline by 3/4"DD. This is the size that is used on Ford Power rack & pinions such as the Mustangs. This U-joint uses pinch bolt fasteners on either side.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Flat Heim Joint Rod End Support Bracket
                        Overall length of 3 1/2 inches long.  Offered with a 3/4 clearances hole for steering heim with a slotted adjustment of 1 7/8 inch long. Bracket is 3/16 thick steel.

Polished Stainless Steel 3/4 O.D. Double D Shaft
                        It's pretty silly to use plain old steel double d shaft with those shiny stainless steel u-joints. We offer this polished stainless steel double D shaft in 18", 22" and 36" cut to fit lengths.
