Cooling Components CCI-1790 Cooling Machine Electric Fan, Style 90

Specs
Material Type:
Plastic
Overall Height:
18.31
Overall Width:
26.00
Sold in Quantity:
Each
Blade Count:
11
Reversable:
No
Voltage:
12.00
Depth:
2.69
Hardware Included:
Yes
Material Thickness:
.17
CFM:
2500
Cooling Fan:
Single
MFG. Part #:
CCI-1790
Rotation:
Counterclockwise
Fan Diameter:
16.25
Cooling Fan Type:
Pull

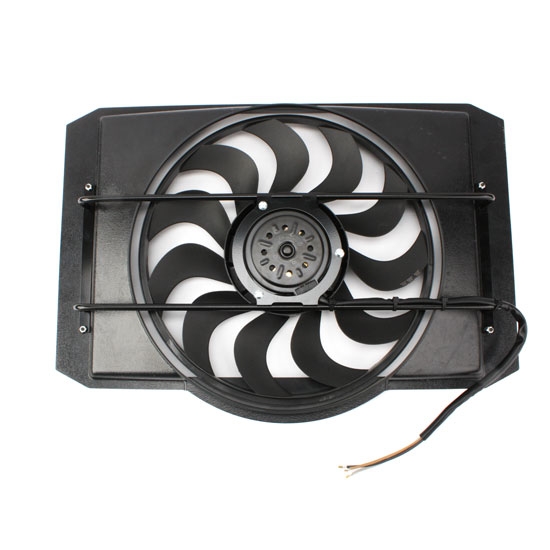

Cooling Components CCI-1790 Cooling Machine Electric Fan, Style 90
Cooling Components CCI-1790 Cooling Machine Electric Fan, Style 90
Cooling Components CCI-1790 Cooling Machine Electric Fan, Style 90

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

At one time or another we all have had a car overheat. The Ultimate Cooling Machine fan/shroud combos are just the ticket to avoid having it happen again. These 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud.

  • 26" wide x 18.31" high
  • Can be easily reduced in size to 23" wide x 18" high
  • 12 volt operation
  • Lower engine operating temperatures
  • Saves horsepower
  • Better fuel mileage
  • Constructed of high-impact ABS material
  • Requires the use of a 70 amp or larger relay
  • Relay and fan control sold seperately.

Fan Vehicle Application Chart (GIF)

Learn more about the importance of using a fan shroud in our tech article, Fan Shrouds - A Critical Cooling System Component.

Notes

  1. This fan has two speeds. It has two positive wires going to the motor, one is gray and one is white. If both recieve 12 volts, the fan will be on high speed. If only one recieves 12 volts, the fan will be on low speed. The black wire is ground.
  2. These fans draw 60+ amps on initial startup and have an operating amperage draw of 16-22 amps. Due to the high amperage these fans pull on initial startup, we highly recommend using 70 amp fan relays 910-51000 or 910-50051.

*Relay and fan control sold seperately.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

dlove63
Verified Purchaser
Pa
Product Rating

I can idle for hours!

July 02, 2014
This fan not only cools my engine very well, but it fit into a very tight space that no other fan would fit. I struggled to find a fan and shroud I could make work, and I'm glad I found this setup.
Pros:
  • Works well
  • Slim
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Raggarkungen
Norway
Product Rating

This fan kit really does the job!

September 20, 2013
Easily keeps my '65 Bonneville (389 V8) cool even when cruisin' at "walking speed" for hours on hot summer days - and nights. And it's not noisy at all. Super quality feel.
Pros:
  • looks almost "oem"
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91015692

Product Q&A

4 questions : 4 answers

1 answers

1964 Impala Fitment Hello, Will this fit a stock 1964 Impala radiator? How does it mount to the rad? Cheers.

impalasyd
August 06, 2014

1964 Impala Fitment Hello, Will this fit a stock 1964 Impala radiator? How does it mount to the rad? Cheers.

Answers

August 06, 2014
EricM
This fan is 26" wide x 18 5/16" high. It can be easily trimmed down to 23" wide x 18" high. Measure the space you have available on your Impala to determine fit. This is mounted by attaching the flange that runs around the perimeter of the shroud to the radiator or to the radiator support. This a universal item and each installation will be a little different.
1 answers

66 nova with a aluminum rad. core measures 22" wide x 18" high would this fit or could I use a style 50 rotated on its side? these push or pullers?

hotrodpch
October 20, 2012

66 nova with a aluminum rad. core measures 22" wide x 18" high would this fit or could I use a style 50 rotated on its side? these push or pullers?

Answers

October 22, 2012
Jason
The style 90 with offset fan is not trimmable to your needs. The style 50 could be trimmed to meet the 18x22 inch core and can lay rotated 90 degrees. The motor does not have a top and bottom and all these Ultimate Cooling Machine fans are set up as pullers.
1 answers

what are the deminsions of the fan and shroud ,Height, width, thickness?

Steve
willcox,Az.
August 21, 2011

what are the deminsions of the fan and shroud ,Height, width, thickness?

Answers

August 23, 2011
Jason
This fan/shroud assembly measures app.26" wide(it could be narrowed to app.23") and 18" tall at the center. This is a very slim unit, measuring only 2-5/8" thick from front to back.
1 answers

i need it to fit 24x16

raven522
santa maria ca
October 18, 2011

i need it to fit 24x16

Answers

October 19, 2011
Jason
This fan/shroud assembly measures app.26" wide(it could be narrowed to app.23") and 18" tall at the center. This is a very slim unit, measuring only 2-5/8" thick from front to back.
