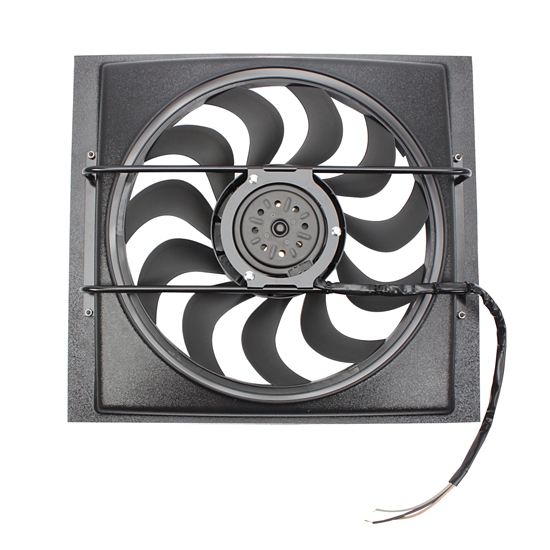

Cooling Components CCI-1750 Cooling Machine Electric Fan, Style 50

SAME DAY SHIPPING! Order within the next 5 hours 28 minutes and receive same day shipping

Specs
Material Type:
Plastic
Overall Height:
22.25
Overall Width:
18.50
Sold in Quantity:
Each
Blade Count:
11
Reversable:
No
Voltage:
12
Depth:
2.75
Hardware Included:
Yes
Material Thickness:
.19
CFM:
2500
Cooling Fan:
Single
MFG. Part #:
CCI-1750
Rotation:
Counterclockwise
Blade Material:
Plastic
Minimum Width:
17.50
Minimum Height:
21.13
Fan Diameter:
16.25
Cooling Fan Type:
Pull
Cooling Components CCI-1750 Cooling Machine Electric Fan, Style 50
Cooling Components CCI-1750 Cooling Machine Electric Fan, Style 50
Cooling Components CCI-1750 Cooling Machine Electric Fan, Style 50
Cooling Components CCI-1750 Cooling Machine Electric Fan, Style 50
Cooling Components CCI-1750 Cooling Machine Electric Fan, Style 50

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

At one time or another we all have had a car overheat. The Ultimate Cooling Machine fan/shroud combos are just the ticket to avoid having it happen again. These 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud. 12 volt.
  • 18-1/2" wide x 22-1/4" high
  • Can be easily reduced in size to 17-1/2" wide x 21-1/8" high
  • 12 volt operation
  • Lower engine operating temperatures
  • Saves horsepower
  • Better fuel mileage
  • Constructed of high-impact ABS material
  • Requires the use of a 70 amp or larger fan relay
  • Relay and fan control sold seperately.

Fan Vehicle Application Chart (GIF)

Learn more about the importance of using a fan shroud in our tech article, Fan Shrouds - A Critical Cooling System Component.

Notes

  1. This fan has two speeds. It has two positive wires going to the motor, one is gray and one is white. If both recieve 12 volts, the fan will be on high speed. If only one recieves 12 volts, the fan will be on low speed. The black wire is ground.
  2. These fans draw 60+ amps on initial startup and have an operating amperage draw of 16-22 amps. Due to the high amperage these fans pull on initial startup, we highly recommend using 70 amp fan relays 910-51000 or 910-50051.

*Relay and fan control sold seperately.

Customer Reviews

Rated 4.8 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
4
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

GaryG1
Verified Purchaser
Extreme southern Illinois
Product Rating

great product

January 26, 2015
Have one on my street rod with a Vette engine never gets hotP
Pros:
  • cools better than any fan i have ever used
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Billc
Verified Purchaser
Salt Lake City, Utah
Product Rating

Easy to set up and IS as advertised

September 07, 2014
Would be nice to offer a bracket kit. I made mine but it took some time.
Cons:
  • should offer a bracket kit.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

maddawg57
Verified Purchaser
va
Product Rating

excellent product , DOUBLE THUMBS UP !!

May 24, 2014
I love it when you buy something and it is as good or better than represented, and this setup goes beyond that. I installed it on my 31 model A with a blower motor that was over heating and had minimal clearance . It does not go over 180 now , fit was great, with minimal trimming , looks like it came on my Griffen radiator , and had room to spare. Great bang for the buck !
Pros:
  • Fit
  • Quality
  • Looks
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Paisano
West River, MD, USA
Product Rating

Small,compact, great install.

September 03, 2013
Speedway 's fast shipping and price is always great.This product is exactly as described,thanks, Paisano
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

backroad
Verified Purchaser
wray, co
Product Rating

Great Fan

October 17, 2011
Minimal work to fit to my radiator. Installs easy after trimming edges. Would use this fan again and recommend this fan.
Pros:
  • Light Weight
  • Easy to fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

Can you tell me the thickness of this assembly? Also I heard the 30 series is thinner, can you list dimension of the 30 series for a 32 Ford radiator?

2 answers
Donzi
June 21, 2013

Can you tell me the thickness of this assembly? Also I heard the 30 series is thinner, can you list dimension of the 30 series for a 32 Ford radiator?

Answers

September 28, 2013
Paisano
I think it is less than 3 inchessomewhere around 2 5/8,total.You can trim the sides to fit.I have clearance problems also,but this seems to be ok. I bought a Walker Cobra style radiator. Paisano
June 24, 2013
Jason
Dimensions for the ultimate cool fan style 50 are listed on Speedway website under the "Specs" tab. Part #91015652: Overall Height - 22.250" (22 1/4") Overall Width - 18.500" (18 1/2") Minimum Height - 21.130" Minimum Width - 17.500" (17 1/2") Depth - 2.750" (2 3/4") Fan Diameter - 16.250" (16 1/4") Blade Count - 11 Blade Material - Plastic Cooling Fan - Single Rotation - Counterclockwise Reversable - No Voltage - 12 volts CFM - 2500 Material Thickness - 0.190" Material Type - Plastic Hardware Included - Yes 91015631: Height=20" (cut to 19-1/4) Width=18-1/8"(cut to 17-1/4) Thickness= 2-5/8"at center Style 30 gives more room at water pump.

Will this fan fit on a 1932 Chevy original radaitor? I have a 350 chevy crate engine installed with a regular electric fan but its not enough to cool and the engine runs hot

1 answers
Ron
Holbrook NY
July 19, 2011

Will this fan fit on a 1932 Chevy original radaitor? I have a 350 chevy crate engine installed with a regular electric fan but its not enough to cool and the engine runs hot

Answers

July 20, 2011
Zach
This is originally intended to be used with a Walker radiator, but you should be able to use it with an original. The measurements are as follows WIDTH: 18 1/2", HEIGHT: 22 3/16. This fan also has the ability of being trimmed down to the following dimensions: WIDTH: 17 1/2" HEIGHT: 21 1/8"

which fan is for a standard 32 ford highboy . all my friends recommend this type but I need the model number. I think its a 15" with 2700 cfm

1 answers
bill
sd,ca
August 13, 2011

which fan is for a standard 32 ford highboy . all my friends recommend this type but I need the model number. I think its a 15" with 2700 cfm

Answers

August 16, 2011
John
This style 50 Ultimate Cooling Machine is specified for the 1932 Ford stock dimension radiator. It can be trimmed to exact fit and offers 2500 cfm of air flow capability. Manufacturer suggests a 40 amp relay kit number 91051000 and this can be triggered by a basic toggle switch or you may want to opt for a temp sensor such as part number 91064206 or an adjustable fan control kit such as 91064014 or 91064062 to compliment the package.

I have a Walker radiator CAC521-1.Can this fan be used on it?Can screws be used safely in the flange that is bent back over the outside tube row on each side of the radiator to hold the shroud on? Thank You Frank Lounsbury

1 answers
Weeki Wachee,FL
August 13, 2011

I have a Walker radiator CAC521-1.Can this fan be used on it?Can screws be used safely in the flange that is bent back over the outside tube row on each side of the radiator to hold the shroud on? Thank You Frank Lounsbury

Answers

August 16, 2011
John
This fan and shroud can be mounted to the outside straps on the sides or top and bottom whether vertical or cross flow by screws or aluminum pop rivets. The shroud comes in dimensions specified and can be trimmed as follows: WIDTH: 18 1/2" HEIGHT: 22 3/16 THE FAN HAS THE CAPABILITY OF BEING "TRIMMED DOWN" TO THE FOLLOWING DIMENSIONS: WIDTH: 17 1/2" HEIGHT: 21 1/8" Manufacturer recommends a 70 amp relay kit number 91050051 and you may also be interested in a sensor to turn it on at a certain temperature or even a variable speed controller. Many options are available and on the our website and in our catalog. With specific questions feel free to call and visit with a street rod tech for assistance.
Page 1 of 1
