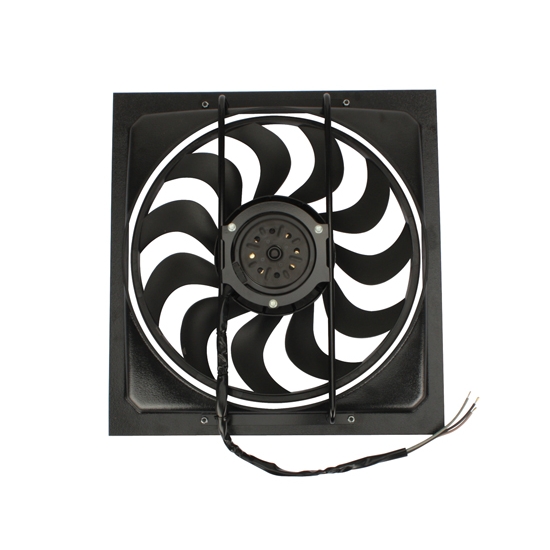

Cooling Components CCI-1720 Cooling Machine Electric Fan, Style 20

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Overall Height:
19.00
Overall Width:
20.00
Sold in Quantity:
Each
Finish:
Painted Black
Amperage:
70
Voltage:
12
Depth:
2.63
CFM:
2500
MFG. Part #:
CCI-1720
Cooling Fan Type:
Electric
Cooling Components CCI-1720 Cooling Machine Electric Fan, Style 20
Cooling Components CCI-1720 Cooling Machine Electric Fan, Style 20
Cooling Components CCI-1720 Cooling Machine Electric Fan, Style 20

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

At one time or another we all have had a car overheat. The Ultimate Cooling Machine fan/shroud combos are just the ticket to avoid having it happen again. The 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud.
  • 20" wide x 19" high (can be trimmed to 18.5" wide x 17.5" tall)
  • 12 volt operation
  • Lower engine operating temperatures
  • Saves horsepower
  • Better fuel mileage
  • Constructed of high-impact ABS material
  • Requires the use of a 70 amp or larger relay
  • Relay and fan control sold seperately.

Fan Vehicle Application Chart (GIF)

Learn more about the importance of using a fan shroud in our tech article, Fan Shrouds - A Critical Cooling System Component.

Notes

  1. This fan has two speeds. It has two positive wires going to the motor, one is gray and one is white. If both recieve 12 volts, the fan will be on high speed. If only one recieves 12 volts, the fan will be on low speed. The black wire is ground.
  2. These fans draw 60+ amps on initial startup and have an operating amperage draw of 16-22 amps. Due to the high amperage these fans pull on initial startup, we highly recommend using 70 amp fan relays 910-51000 or 910-50051.

*Relay and fan control sold seperately.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Can the 20" width be cut to 19" to fit a 1928/29 Model A Walker radiator? I purchased, from Speedway, a Walker Cobra Series radiator for a 1928/1929 Model A. I now wish to use an electric fan with shroud. Cooling Components' web site fan chart suggests Style 20, Speedway web site fan chart suggests Style 70. No matter which I use - Style 20 or 70 - the width of the shroud will have to be reduced to match the width of the radiator especially since I am going to use a chrome radiator shell. Speedway's catalog #source code 34402# states that Style 70 can only be cut to a width of 19 7/8" which will be too wide for the 19" wide radiator along with the grill shell. Can you verify that a Style 20 shroud can be cut to 19". Thank you.

Peducci
Delta, UT 84624, USA
January 01, 2013

Can the 20" width be cut to 19" to fit a 1928/29 Model A Walker radiator? I purchased, from Speedway, a Walker Cobra Series radiator for a 1928/1929 Model A. I now wish to use an electric fan with shroud. Cooling Components' web site fan chart suggests Style 20, Speedway web site fan chart suggests Style 70. No matter which I use - Style 20 or 70 - the width of the shroud will have to be reduced to match the width of the radiator especially since I am going to use a chrome radiator shell. Speedway's catalog #source code 34402# states that Style 70 can only be cut to a width of 19 7/8" which will be too wide for the 19" wide radiator along with the grill shell. Can you verify that a Style 20 shroud can be cut to 19". Thank you.

Answers

January 02, 2013
Jason
The shroud on part number 91015621 measures 20" wide, 19" tall. It could be trimmed to 18-1/2" wide, 17-1/2" tall. The fan/shround assembly is app. 2-5/8" deep at the center of the fan motor.
