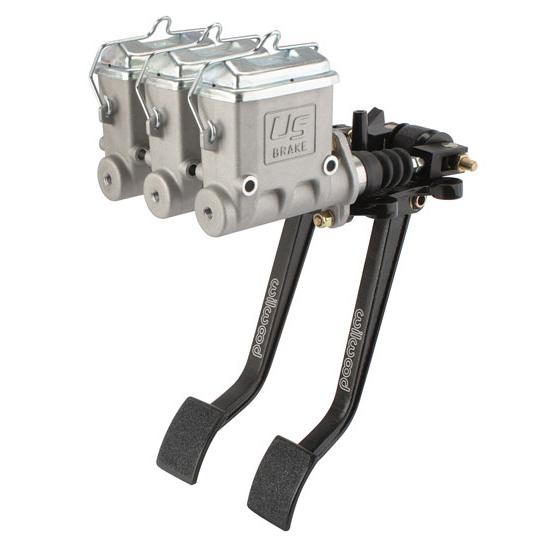

US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1

SAME DAY SHIPPING! Order within the next 9 hours 9 minutes and receive same day shipping

Specs
Sold in Quantity:
Kit
Garage Sale:
No
Notes
Includes pedals and three master cylinders.
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

This Wilwood pedal/US Brake master cylinder assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments.

  • 6.2:1 pedal ratio
  • External return spring maintains positive pedal feel, prolongs pad life
  • Polished smooth bores
  • One-piece alumiunum construction
  • Each master cylinder has a single 1/8" NPT outlet
  • Specify m/c bore sizes needed (3/4", 7/8", 1")

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Specs

  • Pedal Ratio:  6.25:1
  • Pedal Length:  11.71"
  • Mount Length:  12.04"

Item Details

Specify bore sizes in the Comments box of your Shopping Cart at Checkout.
(3/4", 7/8", 1")

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Del
Verified Purchaser
Cedar Rapids, Iowa
Product Rating

Perfect fit

March 13, 2011
Very well built
Pros:
  • Everything in one package
  • Lightweight
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91029984

Product Q&A

1 questions : 1 answers

1 answers

How do you determine what bore size to use.

Dave
Albuquerque NM
April 30, 2011

How do you determine what bore size to use.

Answers

May 03, 2011
Thomas
As a rule of thumb, Calipers are reactive to volume more so than pressure, whereas wheel cylinders like pressure to provide the necessary braking action. For a disc/drum system, a 1" bore will suit the caliper equipped front, then use a 1" or preferably a 7/8" bore M/C for the rear cylinders. A four wheel disc system would be appropriate with a 1 1/8" bore M/C and a four wheel cylinder set-up would be just fine with a 1" bore or possibly smaller with a single chambered M/C.
Page 1 of 1
