AFCO 7241-9003 Stock 2-1/2 Inch GM Metric Caliper, Right Hand Side

Specs
Centerline of Holes:
5.50
Material Type:
Cast Iron
Color:
Gray
Sold in Quantity:
Each
Finish:
Natural
Piston Diameter:
2.50
Caliper Pistons:
Single
MFG. Part #:
7241-9003
Garage Sale:
No

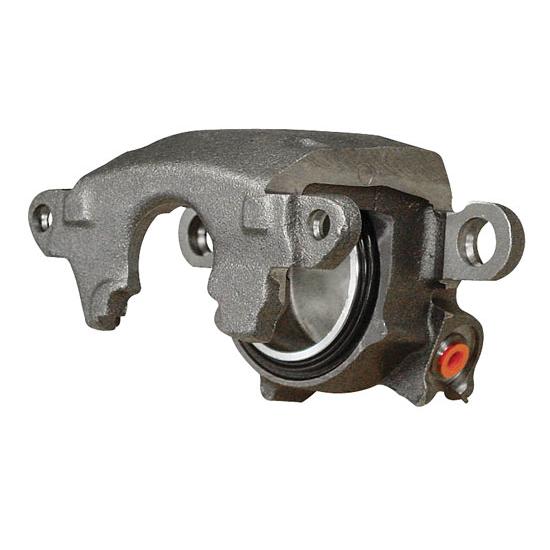

AFCO 7241-9003 Stock 2-1/2 Inch GM Metric Caliper, Right Hand Side
AFCO 7241-9003 Stock 2-1/2 Inch GM Metric Caliper, Right Hand Side

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These are based on the popular GM Metric calipers with 5-1/2" mounting centers.

  • Stock Size: 6.825 lbs.
  • 10mm - 1.5 inlet
