US Brake Dual Master Cylinder Floor Mount Pedal

SAME DAY SHIPPING! Order within the next 10 hours 8 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Width:
3.30
Sold in Quantity:
Kit
Finish:
Painted
Hardware Included:
Yes
Garage Sale:
No
Notes
Includes pedal and two master cylinders.

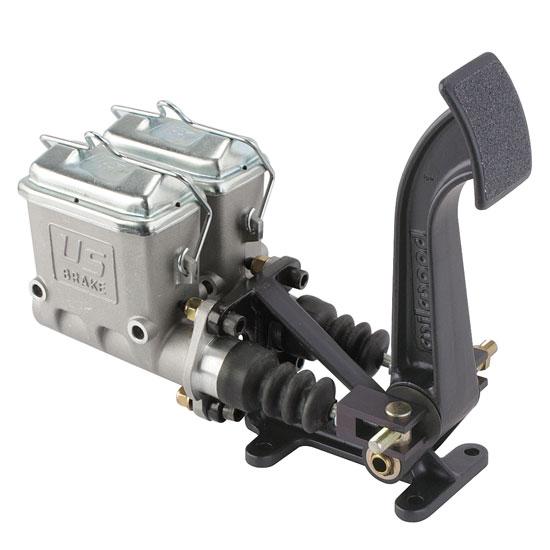

US Brake Dual Master Cylinder Floor Mount Pedal

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

This combo pairs a Wilwood floor mount pedal assembly with two US Brake master cylinders. The pedal features all aluminum frame and arm construction with steel pivots, mounting studs, and an anti-skid pedal pad. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments.

US Brake Master Cylinders

  • External return spring maintains positive pedal feel, prolongs pad life
  • Polished smooth bores
  • One-piece alumiunum construction

Has a 6:1 pedal ratio. Specify m/c bore sizes in Comments box of your Shopping Cart at Checkout: 3/4", 7/8", 1".

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection

Specs

The max height from the flat to the pedal on this is 10.25" the assembled length is 10.50" and the width is 5.00".  The mounting centers on the base are 4.00" x 2.375" so the mounting square will need to be at least 4.75" x 3.25".

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

What is the length and width of this pedal assembly. What size footprint does it require? I want to mount this in a rather tight space where the fire wall is almost vertical and very close to drivers feet.

Jerry
los angeles ,ca
August 18, 2011

What is the length and width of this pedal assembly. What size footprint does it require? I want to mount this in a rather tight space where the fire wall is almost vertical and very close to drivers feet.

Answers

August 23, 2011
QC
The max height from the flat to the pedal on this is 10.25," the assembled length is 10.50," and the width is 5.00." The mounting centers on the base are 4.00" x 2.375" so the mounting square will need to be at least 4.75" x 3.25"
1 answers

I am using one of these on my hot rod a friend gave it to me what type of brake fluid do I use in it Thank you

Sam
Greensboro nc
June 09, 2015

I am using one of these on my hot rod a friend gave it to me what type of brake fluid do I use in it Thank you

Answers

June 09, 2015
Eric
Expert
DOT 3 or DOT 4 brake fluid will work fine in these for your hot rod. We typically use extra high temperature racing brake fluid for racing applications but that is probably not necessary for your application.
