AFCO 7241-1204 F33i Series Caliper, 1.38 Inch Bore, .810 Inch Rotor

SAME DAY SHIPPING! Order within the next 1 hour 29 minutes and receive same day shipping

Specs
Centerline of Holes:
5.25
Material Type:
Aluminum
Color:
Silver
Sold in Quantity:
Each
Finish:
Natural
Piston Diameter:
1.38
Caliper Pistons:
Four
MFG. Part #:
7241-1204
Rotor Thickness:
0.81
Garage Sale:
No

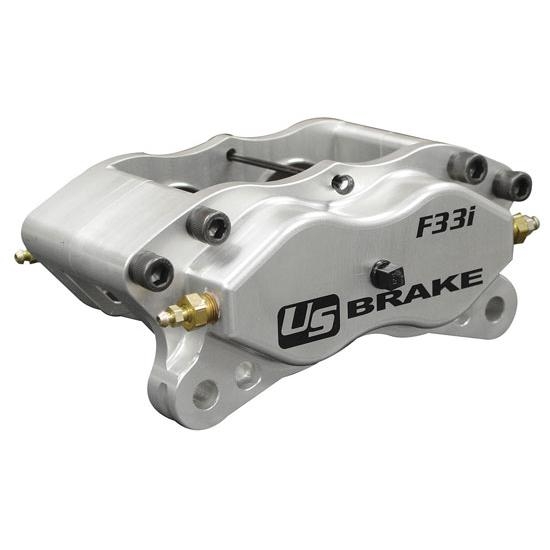

AFCO 7241-1204 F33i Series Caliper, 1.38 Inch Bore, .810 Inch Rotor
AFCO 7241-1204 F33i Series Caliper, 1.38 Inch Bore, .810 Inch Rotor

Click image to enlarge

Speeday Motors Logo
X
AFCO 7241-1204 F33i Series Caliper, 1.38 Inch Bore, .810 Inch Rotor

Details

Reviews

Q & A

What's in the Box

Advanced technology allows the F33i caliper to outperform the competition. Four unique, locking sleeves increase the caliper's structural integrity and resistance to distortion. Lower pedal effort, less brake pad taper, and more consistent lap times make this caliper the winner's choice. Machined from billet 6061-T6 aluminum, these calipers are the hot set-up for todays serious racer.

  • Innovative internal construction locks together the caliper halves for increased rigidity; extra rigidity provides more consistent stopping performance and less brake pad taper
  • Ultra-high temperature resistant square-cut seals resist damage caused from heat and wear
  • Billet-machined 6061-T6 aluminum construction provides maximum strength
  • Bore Diameter: 1.38"
  • Disc Width: 0.81"

Note: Replaces DL type calipers, 5.25" mounting centers.  Commonly used on late models or sprint cars.

Item Details

Bore Diameter: 1.38"
Disc Width: 0.81"
