AFCO 40120C 3 Inch Tube Clamp-On Caliper Bracket, Big GM

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Thread Pitch:
7/16"-20
MFG. Part #:
40120C
Hardware Included:
Yes
Garage Sale:
No
Centerline of Holes:
7.00
Tube O.D.:
3.00
Material Thickness:
.19
Tube Clamp Width:
2.00
Notes
4.00" length from the crown of the axle to the center of the caliper mount holes. Clamp material thickness is .25"

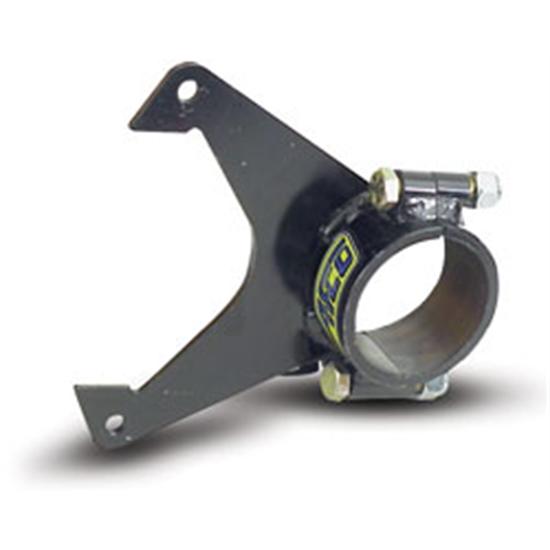

AFCO 40120C 3 Inch Tube Clamp-On Caliper Bracket, Big GM

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

AFCO 3 Inch Tube Clamp-On Caliper Brackets.

Instructions (PDF)

Notes

Stop-bolt recommended and included with bracket

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What is the measurement from center of hole to center of hole ?

Dave73
Monticello, IL 61856, USA
February 12, 2015

What is the measurement from center of hole to center of hole ?

Answers

February 13, 2015
Tech
7"
