AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch

Specs
Material Type:
Cast Iron
Weight:
18.90
Sold in Quantity:
Each
Finish:
Natural
Bolt Pattern:
5 on 5"
Stud Length:
1.92
Stud Diameter:
0.63
Rotor Diameter:
11.00
MFG. Part #:
9850-6510
Rotor Thickness:
0.88
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No

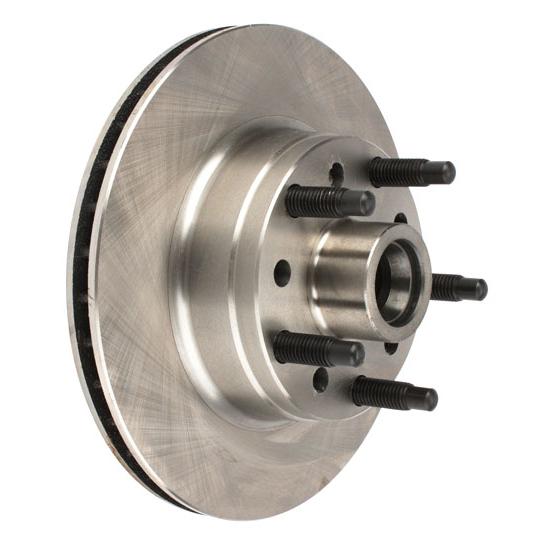

AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch
AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch
AFCO 9850-6510 11 Inch Granada Style Brake Rotor, 1975-1981 5 x 5 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

AFCOs premium 1975-1981 Ford 11" Granada style brake rotor has these great features:
  • Reduces rotating weight
  • Fits Pinto pin
  • Pre-drilled with 5 x 5" stock pattern
  • 11" diameter x .875" thickness
  • Races pre-installed
  • Stock-appearing
  • Meets OEM sanctioning requirements for modifieds, street stocks, and hobby stocks

Instructions (PDF)

Item Details

5/8" coarse studs on 5 x 5" pattern

Notes

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Lizard
Missouri

Read description carefully!

March 14, 2010
The machining was very nice on this rotor made by USbrake but beware it's an 11" across. The listing on the site leads you to believe it's a 10.5" rotor.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

We have corrected this online.
Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

does the 10.5" brake bracket work with this.

modracer76
January 07, 2015

does the 10.5" brake bracket work with this.

Answers

January 07, 2015
EricM
The Afco brake brackets 10640121PL and 10640121PR are correct for this brake rotor. Sorry for the discrepancy on the rotor size.
1 answers

what is shipping weight on this rotor

stangvizer
December 16, 2012

what is shipping weight on this rotor

Answers

December 17, 2012
Jason
The shipping weight is 21 pounds on part #10698506510
1 answers

is this part for a big lug pattern on a ford

January 24, 2012

is this part for a big lug pattern on a ford

Answers

January 25, 2012
Eric
The pattern that the studs are pressed into is 5 studs on 5" bolt circle (commonly referred to as 5 on 5.) There were some Fords vehicles produced with this pattern but there were also some with 5 on 5-1/2" bolt circle. You will need to check your wheels and/or original rotors to determine if these are the correct pattern for you.
Page 1 of 1
