Sander Engineering S-304 U-Joint Assembly, Crank Mount

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Flange Diameter:
1.77
Spline Count:
16
Spline Length:
3.87
MFG. Part #:
S-304

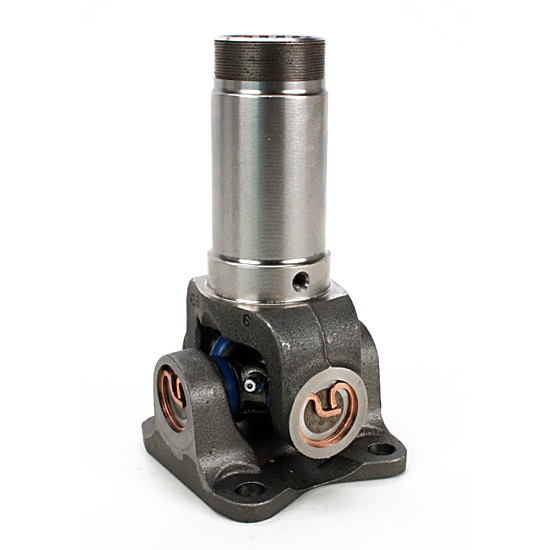

Sander Engineering S-304 U-Joint Assembly, Crank Mount

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Steel u-joint that will bolt to the 624S301 or 91625100

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

What are the bolt hole dimensions on this flange?

1 answers
masterfabricator
September 10, 2013

What are the bolt hole dimensions on this flange?

Answers

September 10, 2013
Jason
This Sander Engineering u-joint is designed for 7/16" bolt diameter and has 2-7/8" by 2-3/8" bolt centers. Speedway offers crank flange adapter #624S301 for early small block chevy and part #91625100 for the later 1 piece rear main small block chevy.
