Transverse Rear Leaf Spring Axle Mounting Brackets, Model T/Model A

SAME DAY SHIPPING! Order within the next 31 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
4.00
Overall Width:
3.75
Overall Length:
5.50
Sold in Quantity:
Kit
Overall Thickness:
.40
Hole Diameter:
.75
Bushing Length:
2.25
Bushing Diameter:
.75
Transverse Rear Leaf Spring Axle Mounting Brackets, Model T/Model A

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

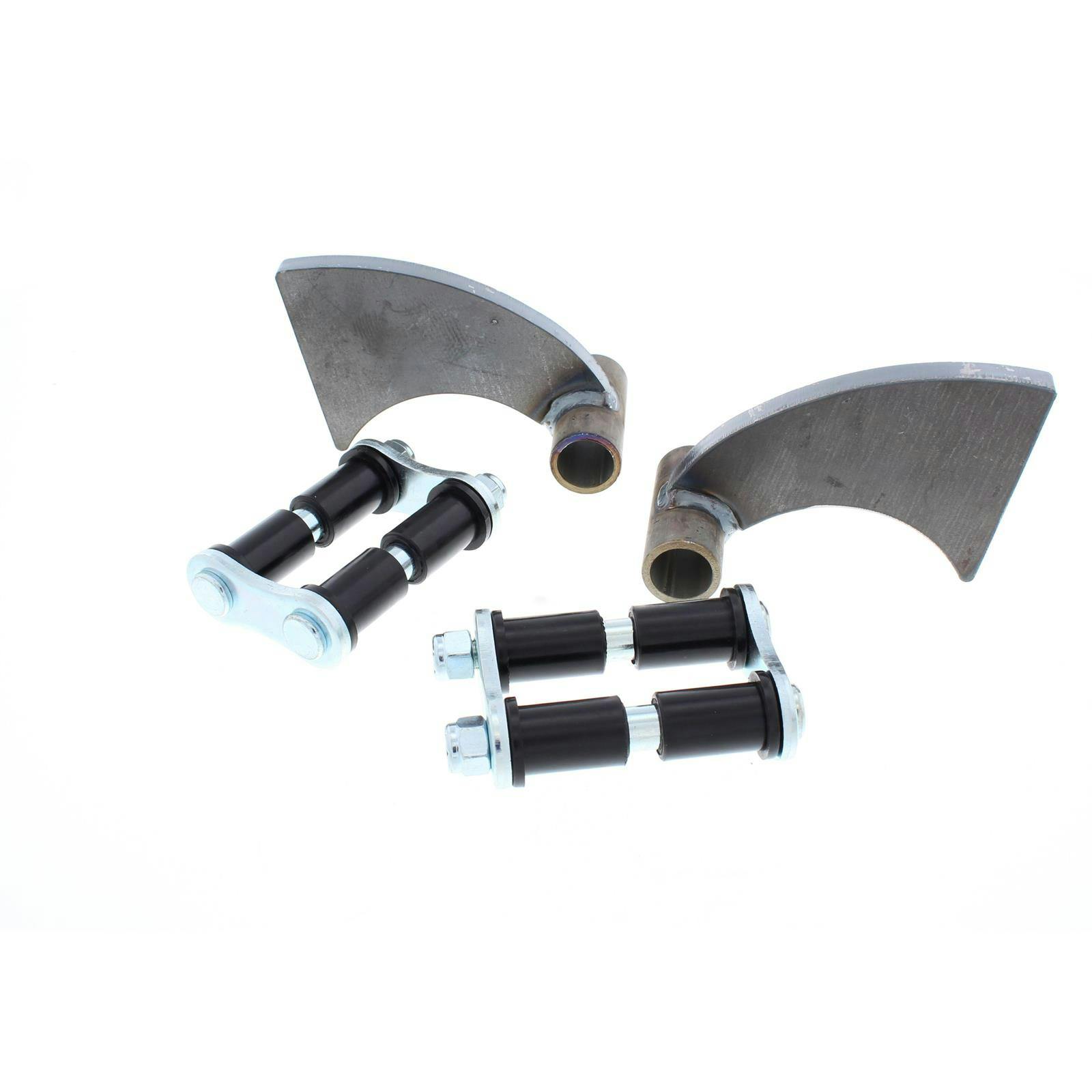

Use these brackets to mount a late model rear axle into a Model T - Model A Ford chassis when using a high-arch, 2-1/4" wide transverse rear leaf spring (like our 910-43102). Brackets locate the leaf spring directly above the axle housing. Includes zinc plated shackles with nylon bushings, weld-on brackets, and instructions.

916-45108 Instructions (PDF)

Notes

  • Bracket Height:  3-1/2" from base of bracket to shackle eye
  • Bracket Width:  3-1/2" from outer edge of bracket base to center of shackle eye
  • Shackle Bolt Centers:  1-1/2"

Item Details

Model T / Model A Ford

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

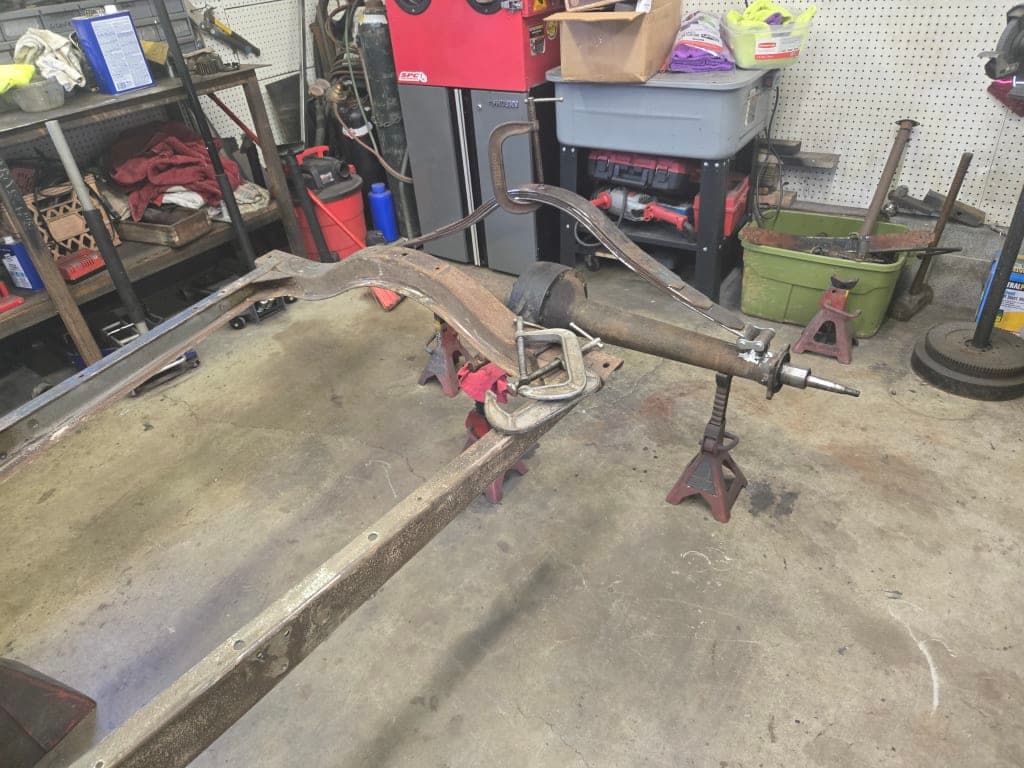

Mounting a '32 Ford axle to a Model A frame. '32 rear end is 48.5" wide. I need 43-45" perch eye spacing, will it fit? Note - picture shows stock Model A spring with the frame high on jackstands. I plan to use either a 910-43106, 910-4305 or 910-43107 spring. Car should be pretty light in the rear except when I have passengers in the back seat.

truckdude
Chicagoland, USA
March 07, 2013

Mounting a '32 Ford axle to a Model A frame. '32 rear end is 48.5" wide. I need 43-45" perch eye spacing, will it fit? Note - picture shows stock Model A spring with the frame high on jackstands. I plan to use either a 910-43106, 910-4305 or 910-43107 spring. Car should be pretty light in the rear except when I have passengers in the back seat.

Answers

March 08, 2013
Jason
Part number 91645108 mounts in different locations depending on the spring used. If using the high arch spring with 39” eye center to center the Model A’s commonly use 46” perch centers and if using the medium arch the A’s commonly use 45” perch centers. The springs both require spreading to hook up to the shackles.
1 answers

Does this kit require the useage of any type of modern shock kit or panhard bar when installed on a stock 1930 Ford Model A Sports Coupe frame using a Chevy 10 bolt positive traction or stock 1956 Ford F100 rear end?

Hosscollar
Seneca,SC.
August 26, 2012

Does this kit require the useage of any type of modern shock kit or panhard bar when installed on a stock 1930 Ford Model A Sports Coupe frame using a Chevy 10 bolt positive traction or stock 1956 Ford F100 rear end?

Answers

August 27, 2012
John
This kit is simply the shackles and the weld on brackets to install a later rear end to your existing Model a cross leaf spring. You will still need to keep the rear end maintained in the stock location via the original wishbones, four bar, ladder bars, etc. Depending on the severity of use a panhard bar would extend the life of the four bar urethane bushings and keep the rear end centered. Shocks are always recommended and different brackets and mounts are available along with a wide variety of shock lengths that needs to match your ride height requirements.
