Track-T Rear Axle Mounting Kit

Price:$199.99
Track-T Rear Axle Mounting Kit
Price:
$199.99
KT
In Stock
Item #:
97349927
Open Kit Components
- Selection of individual components may be necessary for kit purchase.
Kit Components
PLAIN STEEL SLEEVE WITH 5/8"-18 ENDS
Item #:
91631
Length: 24
2
  Show Specifications
  • 91631-24
    Overall Length
    21.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
PLAIN STEEL SLEEVE WITH 5/8"-18 ENDS
Item #:
91631
Length: 25.5
1
  Show Specifications
  • 91631-25.5
    Overall Length
    22.500" (22 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
Standard RH Male Heim, 5/8" Shank/Hole
Item #:
1750106
3
  Show Specifications
  • 1750106
    Threads
    RH Male
    Sold in Quantity
    Each
Standard LH Male Heim, 5/8" Shank/Hole
Item #:
1750306
3
Steel 5/8"-18 RH Jam Nut
Item #:
1750246
3
Steel 5/8"-18 LH Jam Nut
Item #:
1750446
3
Rear MTG Kit-Track T
Item #:
97349927-1
1

(0 Rating)
Click image to enlarge Click image to enlarge
No video at this time.

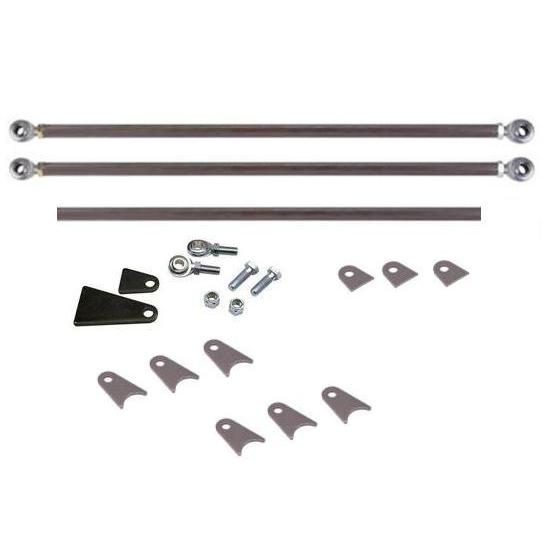

This kit links your rear axle to the Track-T frame mounts using quarter elliptic springs, upper radius rods & a Panhard bar. Quarter elliptic springs not included in kit (sold separately). Builder can cut their own springs from a pair of factory leaves as well. For maximum performance, use Composite Quarter Elliptic Mono-Leaf Springs 974-49934 (at right).

See Features tab for kit list.

Kit includes:

  • Large Panhard bar/right shock mounting bracket
  • Left shock mounting bracket
  • (2) Radius rod mouting brackets
  • (4) Spring mounting brackets
  • Spring clamp plates
  • (2) Rear radius rods, 21" (cut length)
  • Panhard bar, 22.5" (cut length)
  • (3) Spherical rod ends, 5/8" right side standard male
  • (3) Jam nuts, 5/8" right side
  • (3) Spherica rod ends, 5/8" left side standard male
  • (3) Jam nuts, 5/8" left side
  • (2) Bolts, 5/8" UNF x 5"
  • (4) Bolts, 5/8" UNF x 2"
  • (6) Lock nuts, 5/8" UNF
