Track-T Chrome Front End Upgrade

Price:$2,529.99
Track-T Chrome Front End Upgrade
Price:
$2,529.99
KT
Item #:
97339962
Open Kit Components
- Selection of individual components may be necessary for kit purchase.
Kit Components
Axle, Track-T, Chevy, Chrome
Item #:
97335201
1
Super Glide T-Bucket Front Spring, Standard Eye, Chrome
Item #:
91033025
Item Details:
26" Eye-to-Eye
1
1-3/4" WIDE SHACKLE KIT
Item #:
91033323
Finish: Chr
1
Chrome 27" Hairpin Radius Rods
Item #:
91635022
1
Standard Clevis, 5/8" RH Thread, 3/8" Slot, 3/8" Hole, Chrome
Item #:
91002016
4
  Show Specifications
  • 91002016
    Overall Thickness
    0.830"
    Center Hole to End of Shank
    3.480
    Inside Diameter
    0.375" (3/8")
    Sold in Quantity
    Each
Standard RH Male Heim, 5/8" Shank/Hole
Item #:
1750106
4
  Show Specifications
  • 1750106
    Threads
    RH Male
    Sold in Quantity
    Each
Chrome Jam Nut, 5/8" RH
Item #:
91001006
8
1974-80 Pinto to Early Chevy Spindle Kit, Polished Stainless
Item #:
91631919
1
CHROME SPRING PIVOT
Item #:
91633004
2
Chevy Spindle Nut Kit
Item #:
910616005
Item Details:
Includes: pair of nuts, washers and cotter pins
1
Chevy Flat Tie Rod Steering Arms, Chrome
Item #:
91632024
1
Flaming River Vega Steering Box
Item #:
91032200
Item Details:
Box only
1
U-Joint, 5/8"-36 Spline to 3/4" Round Weld-On
Item #:
91032235
Finish: Pln
1
  Show Specifications
  • 91032235-PLN
    Overall Length
    3.750" (3 3/4")
    Outside Diameter
    1.520"
    Shaft Diameter
    0.750" (3/4")
    Spline End
    5/8"-36
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
CHROME STEEL SLEEVE WITH 5/8"-18 ENDS
Item #:
91632
Length: 46
1
CHROME STEEL SLEEVE WITH 5/8"-18 ENDS
Item #:
91632
Length: 28.5
1
Standard LH Male Heim, 5/8" Shank/Hole
Item #:
1750306
2
Chrome Jam Nut, 5/8" LH
Item #:
91001106
2
Hardware Kit-Chrome Tract Fe
Item #:
97339962-1
1
U-BOLTS, 1-3/4" X 2-1/4", CHROME PLATED
Item #:
91633009
1
  Show Specifications
  • 91633009
    Overall Height
    3.000"
    Overall Width
    2.670"
    Center to Center
    2.200"
    Diameter
    0.400"
    Thread Length
    1.500" (1 1/2")
    Thread Pitch
    7/16"-20
    Threads
    RH Male
    Material Type
    Steel
    Finish
    Chrome
    Sold in Quantity
    Pair
    Notes
    Inside measures 1.86" wide x 2.65" tall.
1949-1954 Chevy Complete Spindle Kit
Item #:
91032100
Item Details:
Includes forged spindles with kingpins fit to spindles.
1

(0 Rating)
Click image to enlarge Click image to enlarge
  • Track-T Chrome Front End Upgrade
  • Track-T Chrome Front End Upgrade
  • Track-T Chrome Front End Upgrade
No video at this time.

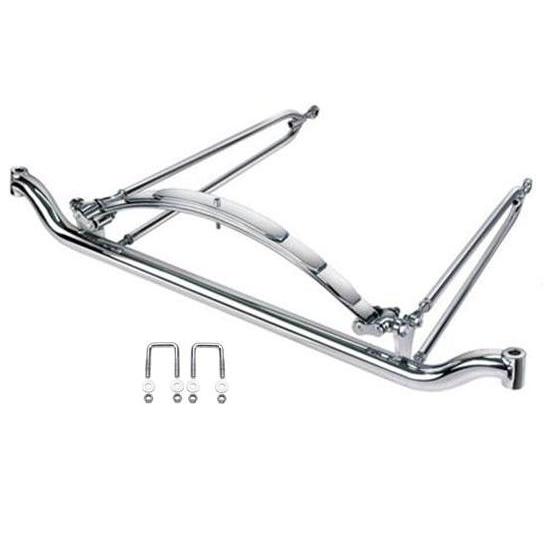

Add some extra flash to your Track-T Roadster with this complete chrome front end kit. Choosing this popular option will get you the combination of three Track-T kits in one: Front Axle Assembly 973-39927, Spindle Kit 973-31932 and Cross Steering Kit 973-39227.

Chrome plated items are simply substituted in for the plain ones in the basic kits. See Features tab for complete chrome list.

Chrome items included:
  • Radius Rods
  • Clevises
  • Tie Rod & Drag Link
  • Spring Pivots
  • Steering Arms
  • Front Axle
  • Steering Arms
  • Front Axle
  • Spring
  • Varous Hardware (Nuts & Bolts)
  • Brake Adapter Brackets
  • Spring Shackles

Chrome Front End Kit includes ALL front suspension & steering components:

  • Front Axle
  • Leaf Spring
  • Radius Rods
  • Suspension Mounting Hardware
  • Spindles & Kingpins
  • Caliper Brackets
  • Spindle Mounting Hardware
  • Vega Steering Box
  • Steering Arms
  • Steering Links & Hardware
