Toe Gauge

Toe Gauge
Toe Gauge
Toe Gauge
Toe Gauge

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

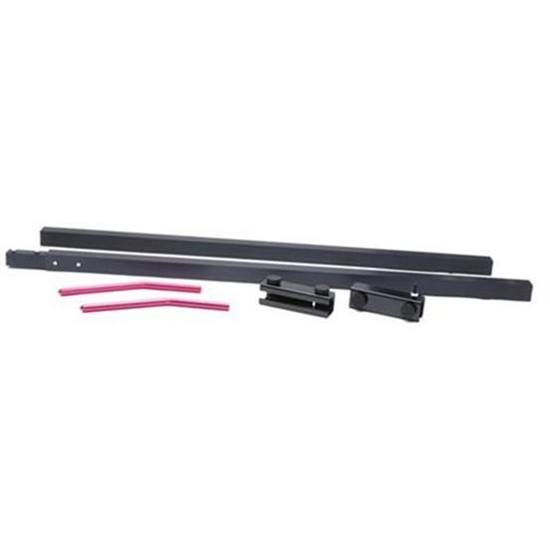

Hi-tech aluminum gauge for measuring toe. Eliminates need for tape measure. Measures in 1/16" increments and is adjustable for use on any car with a maximum 67-1/2" track width.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Carlos56ford
Verified Purchaser
Davie fl
Product Rating

Easy to assemble

March 03, 2013
Instructions are okay good quality product. Will have many years of good use.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Larry
Verified Purchaser
CT
Product Rating

Great item !

September 18, 2011
I wish I had bought this a long time ago.It was easy to use and the best way to check the wheel alignment of my antique car.
Pros:
  • Reliable
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
3008000

Product Q&A

1 questions : 1 answers

1 answers

Is there a minimum and/or maximum measurement limit?

Phoenix
Australia
March 28, 2011

Is there a minimum and/or maximum measurement limit?

Answers

March 30, 2011
Jason R.
The main bar is 6' long and can be adjusted down to 3'. The ruler has 0 in the middle with 3" on each side of 0 for adjustment.
Page 1 of 1
