Sprint Brake Hub & Bolt Kit, 6 on 5 1/2 Inch Bolt Pattern

Specs
Material Type:
Aluminum
Weight:
1.00
Sold in Quantity:
Each
Spline Count:
46
Flange Thickness:
.26
Spline Length:
.88
Bolt Hole Pattern:
6 on 5.5
Hardware Included:
Yes
Spline I.D.:
2.94
Garage Sale:
No

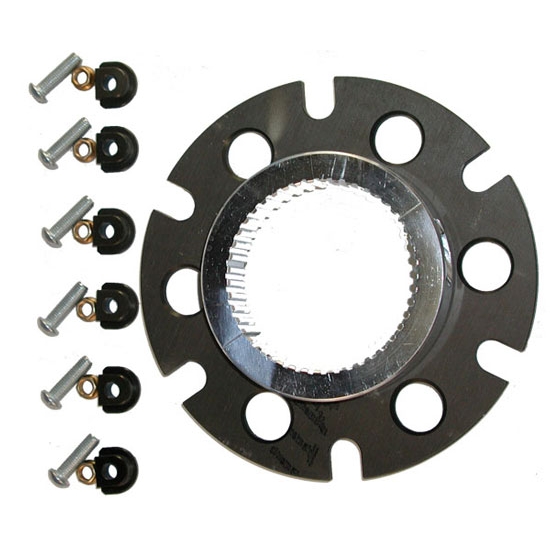

Sprint Brake Hub & Bolt Kit, 6 on 5 1/2 Inch Bolt Pattern
Sprint Brake Hub & Bolt Kit, 6 on 5 1/2 Inch Bolt Pattern

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • For the 10.400" rotor
  • 6 bolt, 5.50" bolt circle
  • Weighs 15 oz.
  • Bolt to inboard rotor with treated titanium bolts and 12 point nuts

Item Details

6 on 5-1/2" Bolt Pattern
