Tight-Tubes Extension Kit, Stainless Steel

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Stainless Steel
Overall Length:
17.50
Sold in Quantity:
Pair
Finish:
Natural
Outside Diameter:
2.50
Angle:
90 degree
Drop:
10.50
Gauge Thickness:
16
Flange Thickness:
.25
Garage Sale:
No
Notes
304 stainless steel. Includes flanges and gaskets.
Tight-Tubes Extension Kit, Stainless Steel
Tight-Tubes Extension Kit, Stainless Steel
Tight-Tubes Extension Kit, Stainless Steel

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

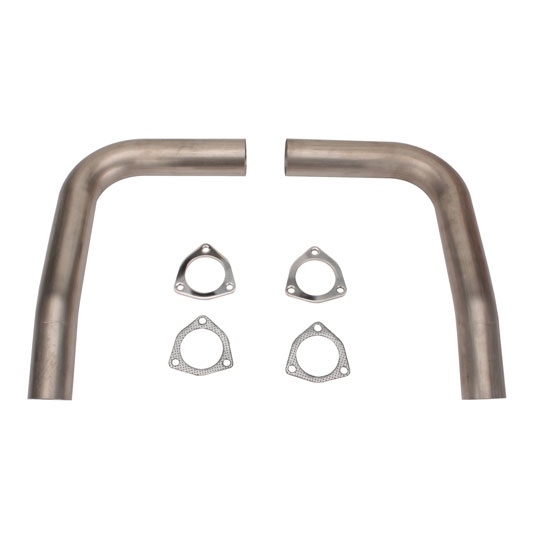

Using this kit makes the hook-up of your exhaust system a snap! The 2-1/2" diameter, 16-gauge, mandrel-bent tubes curve back at a 90° angle and are offset outward to clear the bellhousing and starter. They drop 10-1/2" from the header flange and they extend backward 17-1/2" after the 90 degree bend.

Just trim the length, weld on the 3/8" thick collector flange (included, with gaskets) and youre all set! Works great with any tight-fit headers. Header not included.

Item Details

NOT polished

Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

John
Verified Purchaser
Meraux Louisiana

The product is quantity

July 13, 2015
Was to large for my application need 2 inch or 2 1/4 inch -- things are tight under my 33 coupe
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Heideho

Beautiful!

September 22, 2014
The description by Speedway does not do these justice, I was expecting plain stainless, but these are polished and quite beautiful.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

shm77
Verified Purchaser
Omaha,ne.

good product.

August 01, 2014
this product is good.But I think I have my motor mounts in a bad place and I can't get the pipes to line up in the header outlet.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

RockingK
Verified Purchaser
Central Texas

Quality product

September 27, 2013
Good quality product, no clamp marks, smooth semi-polished finish.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Stana1
Verified Purchaser
Tulsa, Ok.

Exactly as described, excellent quality,

May 19, 2012
I have ordered numerous items over the years. Good prices, excellrnt shipping and tech.
Pros:
  • Great price
  • Great product
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

2 answers

What is diameter measurement? I.d or o.d?

Erson307
August 13, 2014

What is diameter measurement? I.d or o.d?

Answers

June 14, 2015
John
do you have this in 2 1/4 ==== things are tight THANKS John
August 13, 2014
EricM
These are 2.5" OD tubing.
1 answers

What type of stainless are these?

J W
Seattle, WA
May 12, 2011

What type of stainless are these?

Answers

May 13, 2011
Jason
These are made from 304 stainless
1 answers

what are the length of the tubes

February 12, 2011

what are the length of the tubes

Answers

February 16, 2011
Waymon
Thank you for your interest in our, Tight-Tubes Extension Kit - Stainless Steel Item #: 91013386. They drop 10-1/2" from the header flange and they extend backward 17-1/2" after the 90 degree bend.
Page 1 of 1
