TP/Econoline Standard King Pin Set

SAME DAY SHIPPING! Order within the next 10 hours 51 minutes and receive same day shipping

TP/Econoline Standard King Pin Set

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

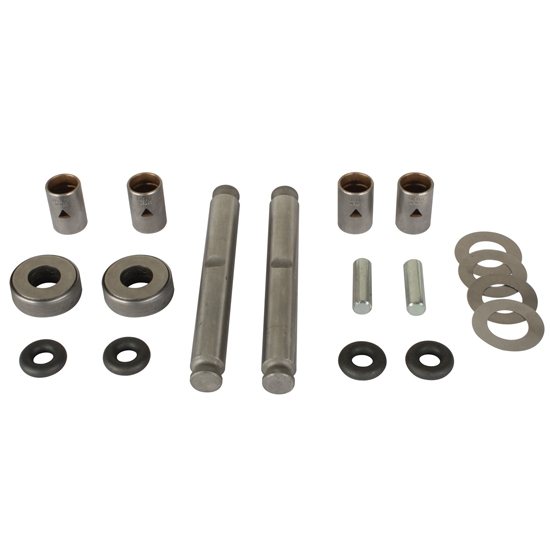

These kingpins fit Total Performance spindles and 1961-1963 Ford Econoline Van spindles. Kits come complete with bushings, bearings and locks.

  •  All standard kingpin bushings must be reamed or honed to exact size after installation in your spindles.
  • These king pins have a wide machined groove at either end that uses a large O-ring seal to keep water out of the assembly.
  • Also includes the retainer "wedge" pins and shims.

Specs

  • King Pin Diameter:  .739" - .741"
  • Overall Length of Pin:  6.25"
  • Bearing Thickness:  .547"
  • Includes (4) Bushings:  .867" O.D. and 1.262" long

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

I have these king pins on my T Bucket and want to tighten them up. Are the shims and rubber o rings available separately.

Jim
June 08, 2015

I have these king pins on my T Bucket and want to tighten them up. Are the shims and rubber o rings available separately.

Answers

June 08, 2015
Steve
Expert
I'm sorry, I don't have the shims, or o-rings available separately.
1 answers

I have a 29 ford model A but I didnt build it. How can I identify what axle it is to order the proper king pin and bushings for repairs?

John
Northern Wi
July 21, 2015

I have a 29 ford model A but I didnt build it. How can I identify what axle it is to order the proper king pin and bushings for repairs?

Answers

July 21, 2015
Eric
Expert
Check out our tech section that covers spindles and front axles. With the kingpin diameter, kingpin length, axle boss length, and backing plate mounting bolt pattern you should be able to determine if you have one of the commonly available spindles. Here is a link to the article: http://www.speedwaymotors.com/Tech/suspension-solid-axle-spindle-solutions.html
