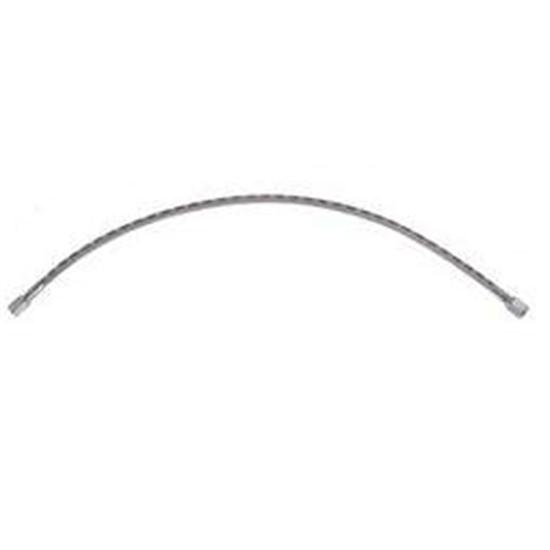

T56 Hydraulic Clutch Line Kit, 48 Inch

SAME DAY SHIPPING!

Specs
Material Type:
Teflon
Overall Length:
48.00
Sold in Quantity:
Each
Outer Braid:
Stainless
Fitting End A:
-
Fitting End B:
-
Garage Sale:
No

Share by Email

From
To

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

X

Details

Reviews

Q & A

What's in the Box

You have finally found that T56 6-speed to put behind your Chevy V-8 and now are ready to hook up the release bearing. We have this neat kit that allows you to hook it up to a common Wilwood master cylinder. Our AN3 braided stainless steel hose is available in three lengths: 25", 36" and 48" lengths.

You will also want to buy the banjo fitting kits and the Wilwood master cylinder.

NOTE: These lines are for Corvette and GTO specific T56 six-speeds only. Transmissions out of F-Body Camaro/Firebirds will need AN4 lines.

Item Details

Zinc Plated Steel Ends
