Sweet Mfg. 306-10200 Wing Cylinder, 10 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Overall Diameter:
1.38
Hole Diameter:
.38
Extended Length:
26.50
Compressed Length:
16.50
Thread Pitch:
-3 AN
Arm Length:
10.00
MFG. Part #:
306-10200
Garage Sale:
No

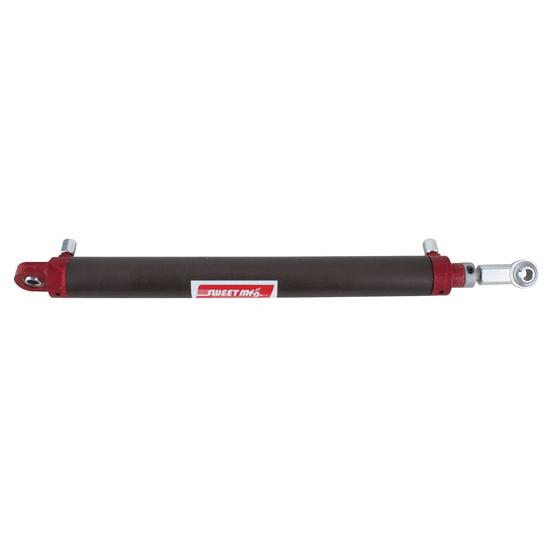

Sweet Mfg. 306-10200 Wing Cylinder, 10 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The first 10" stroke wing cylinder specifically designed for oil use! Mate with Sweet valve for optimum performance. Rated to 1300 psi!

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
