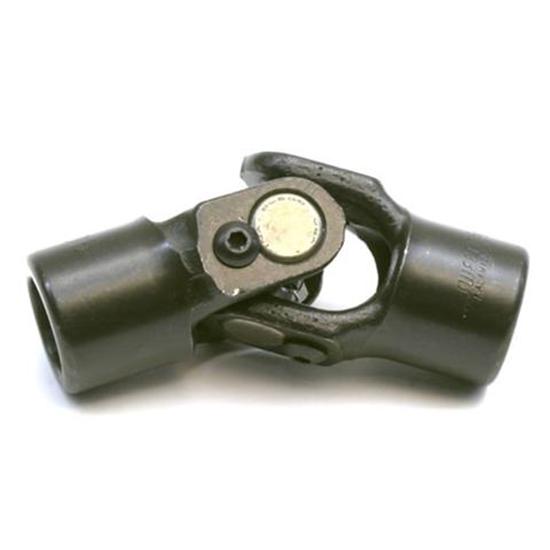

Sweet Mfg Steering U-Joint, 3/4 Inch DD to 1 Inch DD, GM Column / Universal

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Overall Length:
3.75
Sold in Quantity:
Each
Finish:
Black Oxide
Outside Diameter:
1.50
End #1:
3/4 inch DD
End #2:
1 inch DD
Garage Sale:
No
Notes
Exact measurement of end #2 measurement is .982"

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints are 3.875 inches long and 1.375 inches in diameter.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875" L x 1.375" D
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the u-joint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Item Details

GM Column/Universal
3/4" Double D to 1" Double D
