Sweet Mfg Coupler, 5/8 36 Spline, 3/4 Rnd Non-Flex, Vega/Corvair/GM

Specs
Material Type:
Steel
Overall Length:
2.00
Sold in Quantity:
Each
Finish:
Natural
Overall Diameter:
1.06
End #1:
3/4 inch Round
Spline OD:
.625
Spline Count:
36
MFG. Part #:
30130140

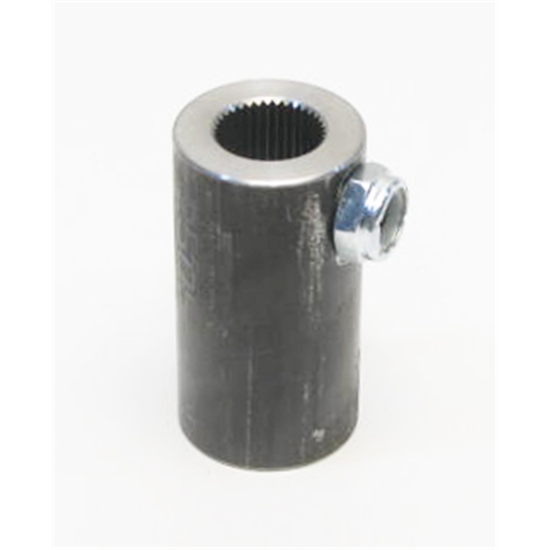

Sweet Mfg Coupler, 5/8 36 Spline, 3/4 Rnd Non-Flex, Vega/Corvair/GM

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Steel coupler is splined on one end and has a 3/4" round hole on the other.

When ordering, select applicable hole size/spline needed.

Coupler = 2" L x 1.060" D

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Item Details

This coupler will only fit original OEM steering boxes or original OEM rack and pinions. It will not fit aftermarket steering boxes or racks.

Customer Reviews

Rated 3.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

27tbone
Verified Purchaser
Livermore, CA, USA
Product Rating

Useful part

July 10, 2014
Coupler is a must have for anyone using a Corvair or Vega box that transitions into a 3/4" shaft. It is well priced and well made. Anyone building their own steering linkage needs this part.
Pros:
  • inexpensive well made
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

motzbigr
Verified Purchaser
Michigan
Product Rating

Well made, great value

January 27, 2012
useful product for custom application
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

wmbcobb
Verified Purchaser
Product Rating

wrong size

September 12, 2014
Didn't fit, I was not aware there is 2 different sizes of 5/8 36 splines Scratched it trying to "get it on" Lesson learned
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91032284

Product Q&A

1 questions : 1 answers

1 answers

WHY WILL THIS NOT FIT AFTERMARKET BOXES? HOW DO I TELL THE DIFFERENCE OF OEM TO AFTERMARKET?

November 29, 2011

WHY WILL THIS NOT FIT AFTERMARKET BOXES? HOW DO I TELL THE DIFFERENCE OF OEM TO AFTERMARKET?

Answers

November 30, 2011
John
Part # 91032284 If you order an aftermarket box from Speedway or other suppliers the input shaft is actually .010 over the 5/8” so this coupler will be too small. Careful measuring will determine fit and if you have the larger input we offer part number 91032235.
Page 1 of 1
