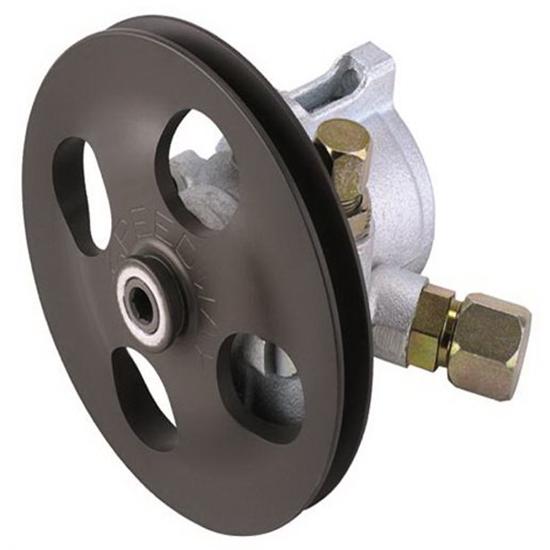

Speedway Steel Power Steering Pump with Pulley

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Width:
3.81
Overall Length:
4.13
Sold in Quantity:
Each
Finish:
-
Belt Type:
V-Belt
Diameter:
6.00
Outlet Fitting:
-6 AN
Notes
Operates at 1000 psi and has a minimum operating speed of 1500 RPM.
Speedway Steel Power Steering Pump with Pulley

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Cast iron power steering pump has aluminum V-belt pulley. These pulleys are popular for use on late models and IMCA modifieds. Comes with AN6 pressure fitting. Order AN8 or AN10 supply fitting. These power steering pumps have a pressure relief valve.

Mounting brackets available for head or block mounting.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Arnoldracing13
Chouteau, OK 74337, USA
Product Rating

Reliable performance

September 15, 2013
I highly recomend this sweet power steering pump to anyone that is or even those that aren't on a budget. I have used the same pump for about 5sseason's and never had any issues.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

what power sterring line do i have to run? I have the speedway motors power sterring pump and looking for a pressure line? which one do I have to use? could I make my own? im running oval track imca modified, I have the adaptors already in the sterring box for the metric box the an fittings

1 answers
blakemeylan
February 24, 2015

what power sterring line do i have to run? I have the speedway motors power sterring pump and looking for a pressure line? which one do I have to use? could I make my own? im running oval track imca modified, I have the adaptors already in the sterring box for the metric box the an fittings

Answers

February 24, 2015
EricM
For the hi pressure side you need to use hose such as 106FC300 and the correct hi pressure fittings to go with it. The return from the box to the reservoir as well as the feed from the bottom of the reservoir to the power steering pump can be a push lock or stainless braided hose. We do offer hose kits such as 91032950 or 91032960 which contain the hose and hose ends which are commonly used.

Will this work with a long water pump for Chevy?

1 answers
Izzi
January 21, 2015

Will this work with a long water pump for Chevy?

Answers

January 21, 2015
EricM
We offer mounting brackets such as 91032904 or 91032905 but they are designed to line up with the second groove on a small block Chevy with a short water pump. You can space the pump out to use it on a long water pump if desired. Sorry we do not offer a bracket made to fit this power steering pump for a long water pump application.

Pulley Removal How do I remove the pulley to replace with the new one you have recommended and I have now purchased?

1 answers
Ceebee
Upper Hutt, New Zealand
October 14, 2014

Pulley Removal How do I remove the pulley to replace with the new one you have recommended and I have now purchased?

Answers

October 14, 2014
EricM
A pulley remover such as 91089637 can be used with this pump.

Alter pully to hit 1500rpm I have installed this onto my dirt track vehicle running a sweet power steer system. ie servo and rack. I run a 6 1/2 crank pulley. Due to idling at 900rpm I have no power steering at low rpm. Is there a pully alteration I can do to have steering whilst at low rpm

1 answers
Ceebee
October 06, 2014

Alter pully to hit 1500rpm I have installed this onto my dirt track vehicle running a sweet power steer system. ie servo and rack. I run a 6 1/2 crank pulley. Due to idling at 900rpm I have no power steering at low rpm. Is there a pully alteration I can do to have steering whilst at low rpm

Answers

October 06, 2014
EricM
We offer a 5" pulley part number 91032928 which will speed up your power steering pump. Keep in mind that with your 6 1/2" crank pulley that your power steering pump will be turning 1.3 times the RPM of your engine with the smaller 5" pulley. On a high RPM racing application that can possibly cause a failure of the pump.

What is the diameter or width of the pulley?

1 answers
lmdirtracer
October 27, 2012

What is the diameter or width of the pulley?

Answers

October 29, 2012
Jason
This pump has a 6" diameter pulley

will this pump mount to a 350 chevy, short water pump. Car has a gm steering gearbox. 1979 grand prix

1 answers
tom
missouri
April 20, 2011

will this pump mount to a 350 chevy, short water pump. Car has a gm steering gearbox. 1979 grand prix

Answers

April 22, 2011
Craig
This pump will mount to a 350 Chevy motor with a short water pump and will work with a gm gear box. This pump uses AN8 fitting on the inlet and AN6 fittings on the outlets.
Page 1 of 1
