Sweet Mfg. 005-92343-235 Power Rack and Pinion, 3-3/4 Inch, .235 Servo

Specs
Overall Height:
5.00
Overall Width:
18.25
Sold in Quantity:
Each
MFG. Part #:
005-92343-235
Rack Type:
Power

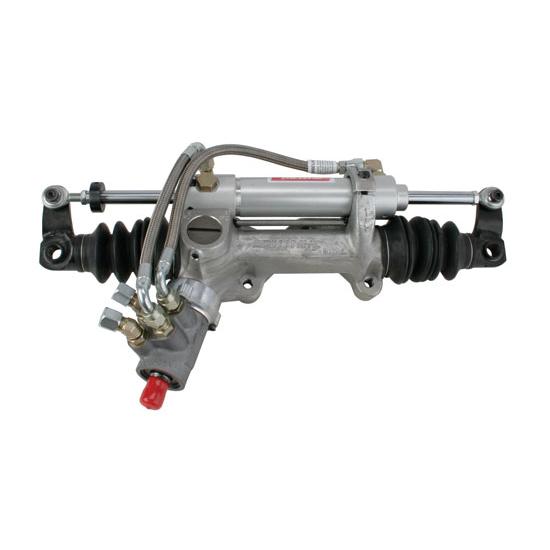

Sweet Mfg. 005-92343-235 Power Rack and Pinion, 3-3/4 Inch, .235 Servo

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These power rack & pinions fit the majority of Rayburn, Mastersbilt, Barry Wright, Rocket (blue), Victory Circle and Warrior chassis and are 18-1/4".

Rack speed is measured in inches per turn.  If you turn the pinion (1) time, the rack shaft will move between 1-3/4" (slow) and 3-1/4" (fast).  That number is stamped on the front of the housing next to the greases fitting.







Item Details

3-3/4" with .235 servo

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

RACK AND PINION I AM JUST CURIOUS IF I CAN GET A RACK THAT YOUR GUYS OFFER WITH A DIFFERNET SERVO. I AM LOOKING FOR A 185 SERVO AND ALL YOU GUYS SHOW ARE 220 AND 235.

1 answers
SGOUGH33
Tampa, FL, USA
January 04, 2015

RACK AND PINION I AM JUST CURIOUS IF I CAN GET A RACK THAT YOUR GUYS OFFER WITH A DIFFERNET SERVO. I AM LOOKING FOR A 185 SERVO AND ALL YOU GUYS SHOW ARE 220 AND 235.

Answers

January 05, 2015
EricM
Sorry we do not offer this rack with a 185 servo.

How many turns? The spec says 3 3/4" travel per turn, but how many turns?

1 answers
Opus
Garland, TX, USA
January 16, 2014

How many turns? The spec says 3 3/4" travel per turn, but how many turns?

Answers

January 17, 2014
EricM
This rack will be approximately 1.5 turns lock to lock.

power head on the power head you have a stamp p dose this stand for pump t dose this stand for tank on the hoses our rack only has a 1 sided ram. thank you

1 answers
lan383
au
August 24, 2013

power head on the power head you have a stamp p dose this stand for pump t dose this stand for tank on the hoses our rack only has a 1 sided ram. thank you

Answers

August 26, 2013
Jason
On this Sweet power rack and pinion the "P" is for pressure side and "T" is for return.
