Sweet Mfg. Double U-Joint, 3/4-30 Spline to 3/4 DD, Small GM '78-UP

SAME DAY SHIPPING! Order within the next 10 hours 23 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Length:
5.625
Sold in Quantity:
Each
Finish:
Black Oxide
End #1:
3/4 inch DD
Spline OD:
.750
Spline Count:
30
MFG. Part #:
401-81519
Set Screw Included:
Yes
Max Operating Angle:
70

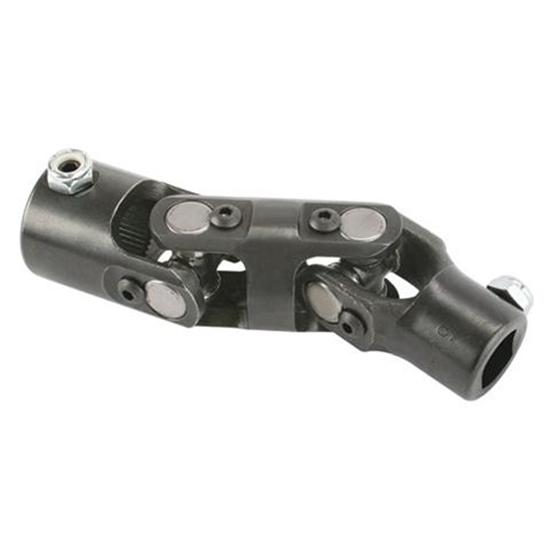

Sweet Mfg. Double U-Joint, 3/4-30 Spline to 3/4 DD, Small GM '78-UP

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

'Small GM P/S ''78 and Later
3/4"-30 Spline'

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
