Sweet Mfg. Double U-Joint, 3/4-30 Spline 3/4 Round, Small GM '78-UP

SAME DAY SHIPPING! Order within the next 2 hours 58 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Length:
5.625
Sold in Quantity:
Each
Finish:
Black Oxide
End #1:
3/4 inch Round
End #2:
3/4"-30 spline
Spline Count:
30
MFG. Part #:
401-80615
Set Screw Included:
Yes
Max Operating Angle:
70

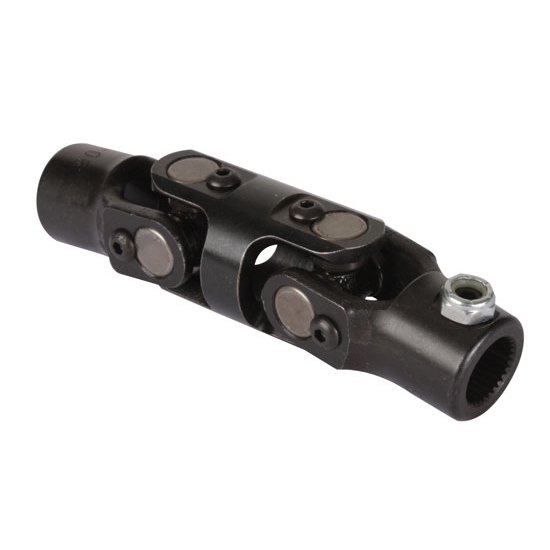

Sweet Mfg. Double U-Joint, 3/4-30 Spline 3/4 Round, Small GM '78-UP
Sweet Mfg. Double U-Joint, 3/4-30 Spline 3/4 Round, Small GM '78-UP

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions.These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.



Item Details

Small GM P/S '78 and Later
3/4"-30 Spline
