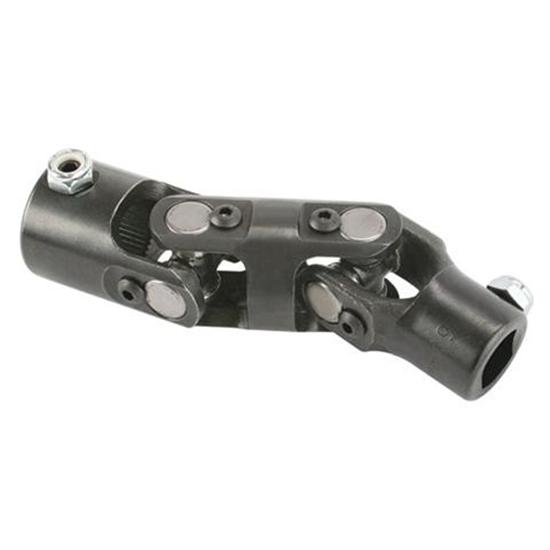

Sweet Mfg. Double Steering U-Joint, 1 Inch-48 Spline to 3/4 Inch Round, GM Column

SAME DAY SHIPPING! Order within the next 12 hours 29 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Length:
5.61
Sold in Quantity:
Each
Finish:
Black Oxide
Outside Diameter:
1.48
End #1:
3/4 inch Round
End #2:
1"-48 spline
Spline OD:
1.00
Spline Count:
48
MFG. Part #:
401-80618
Set Screw Included:
Yes
Max Operating Angle:
70
Sweet Mfg. Double Steering U-Joint, 1 Inch-48 Spline to 3/4 Inch Round, GM Column
Sweet Mfg. Double Steering U-Joint, 1 Inch-48 Spline to 3/4 Inch Round, GM Column

Click image to enlarge

Speeday Motors Logo
X
Sweet Mfg. Double Steering U-Joint, 1 Inch-48 Spline to 3/4 Inch Round, GM Column

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

  • Overall length is 5-1/2”
  • O.D. at ends is 1.12”
  • O.D. in the middle is 1.476”
  • O.D. at caps is 1.350”
  • O.D. at cap retainer screws is 1.545”
  • Length of center section is 2-3/4”
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



Item Details

GM Column
1"-48 Spline

You may also be interested in:

Sweet Mfg Steering U-Joint, 3/4 Inch Round to 3/4 Inch Round, Universal


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering u-joints available. Made by Sweet Manufacturing. These steering universal joints have 3/4 weld-on ends.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875" L x 1.375" D

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



U-Joint, 3/4"-36 Spline To 3/4" Round Weld-on


Don't jeopardize your safety with inferior quality Mustang II power rack universal joints. Speedway offers only the finest steering U-joints made by Sweet Manufacturing.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
  •  3/4"-36 Spline
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Steering U-Joint, 9/16 26 Spline to 3/4 DD, Mustang II Manual


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature forged Vanadium steel yokes and full compliment bearings.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Steering U-Joint, 3/4 Inch Round to 1 Inch DD, GM Column/Universal


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have a 3/4 round weld-on end.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875" L x 1.375" D
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. Double Steering U-Joint, 1 Inch 48-Spline to 3/4 Inch DD, GM Column


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth


These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inch in total length and have a 1.650 inch diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Unisteer 8050230 Steering U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation. These universal joints are 3-3/4 inch in length and have a 1.650 inch outside diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length

This size of spline works with Unisteer's Cross Steer Rack & Pinion, Prostock Rack, and Manual Camaro Rack & Pinion and is also the size of manual Mustang Style Rack & Pinions.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Unisteer 8050880 Steering U-Joint, 3/4 Inch-36 Spline to 3/4 Inch DD


These polished stainless steel steering U-joints look great and use a pinch bolt on each end for easy installation.

This particular steering universal joints Size is 3/4"-36 count spline by 3/4"DD. This is the size that is used on Ford Power rack & pinions such as the Mustangs. This U-joint uses pinch bolt fasteners on either side.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Sweet Mfg Chrome Double U-Joint, 3/4 Inch DD to 1 Inch DD, GM


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. 401-91919 Chrome Double U-Joint, 3/4 Inch DD to 3/4 Inch DD


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-5/8" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 3/4 Inch DD to 1 Inch DD, IDIDIT/Flaming River


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 5/8 Inch-36 Spline to 3/4 Inch DD


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 3/4 Inch-30 Spline to 3/4 Inch DD


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 1 Inch-48 Spline to 3/4 Inch DD


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.
