Sweet Mfg. Double U-Joint, 1 In 48-Spline to 3/4 In DD, GM Column

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Length:
5.625
Sold in Quantity:
Each
Finish:
Black Oxide
End #1:
3/4 inch DD
Spline OD:
1.00
Spline Count:
48
MFG. Part #:
401-81819
Set Screw Included:
Yes
Max Operating Angle:
70

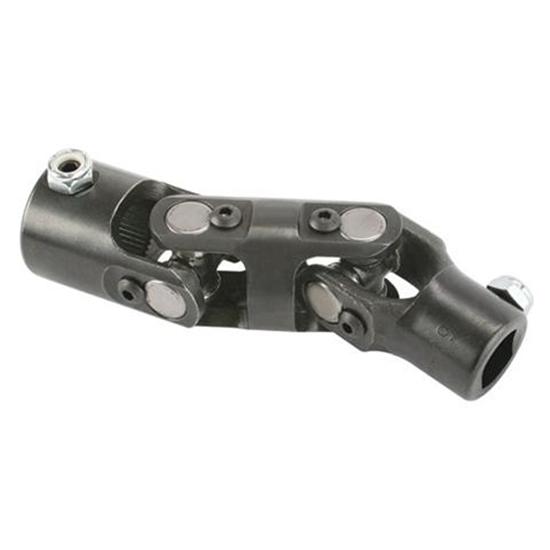

Sweet Mfg. Double U-Joint, 1 In 48-Spline to 3/4 In DD, GM Column

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

GM Column
1"-48 Spline

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dennis069
Verified Purchaser
Omaha, NE, USA

This product got me out of a pinch

July 22, 2014
The Double Steering U-Joint worked just great. I HAVE ABOUT A 45 degree angle and it work perfectly in my 46 Chevy Pickup with a Nova sub frame.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 2 answers

2 answers

What do I need for a steady point if any ? so if i run this joint off the bottom of my column and a 3/4-36 spline x 3/4 DD off my rack with aprox 18 inches of DD shaft do I need a helm joint somewhere in the middle to steady.. im running this in a 48 fleetline with a 350/350 set up

ridiculus
Montrose, BC, Canada
June 21, 2014

What do I need for a steady point if any ? so if i run this joint off the bottom of my column and a 3/4-36 spline x 3/4 DD off my rack with aprox 18 inches of DD shaft do I need a helm joint somewhere in the middle to steady.. im running this in a 48 fleetline with a 350/350 set up

Answers

August 21, 2014
WillysRacingGarage
If you run more than 1 u-joint you then need a heim support
June 23, 2014
EricM
Yes you will need to support the shaft somewhere close to this double joint.
Page 1 of 1
