Sweet Mfg. Double U-Joint, 1 DD to 3/4 Round, IDIDIT/Flaming River

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Black Oxide
End #1:
3/4 inch Round
End #2:
1 inch DD
MFG. Part #:
401-80623
Garage Sale:
No
Set Screw Included:
Yes
Overall Length:
5.63
Outside Diameter:
1.50
Max Operating Angle:
70

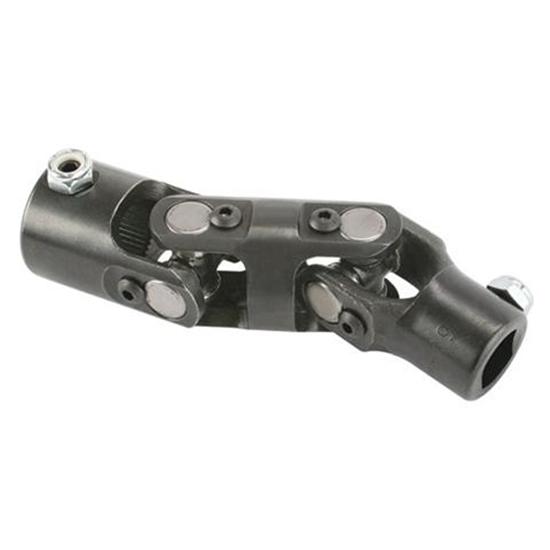

Sweet Mfg. Double U-Joint, 1 DD to 3/4 Round, IDIDIT/Flaming River

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

  • Overall length is 5-1/2”
  • O.D. at ends is 1.12”
  • O.D. in the middle is 1.476”
  • O.D. at caps is 1.350”
  • O.D. at cap retainer screws is 1.545”
  • Length of center section is 2-3/4”
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

IDIDIT, Flaming River
1" Double D

Application


Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

McEyver
Verified Purchaser
Apopka ,Fl

I would buy this product again

June 26, 2012
Best to start with from the end of the steering colum especially in those tight area .
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
