Sweet Mfg. Double Steering U-Joint, 1 DD to 3/4 DD, IDIDIT/Flaming River

SAME DAY SHIPPING! Order within the next 12 hours 28 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Length:
5.625
Sold in Quantity:
Each
Finish:
Black Oxide
End #1:
1 inch DD
End #2:
3/4 inch DD
MFG. Part #:
401-81923
Set Screw Included:
Yes
Max Operating Angle:
70

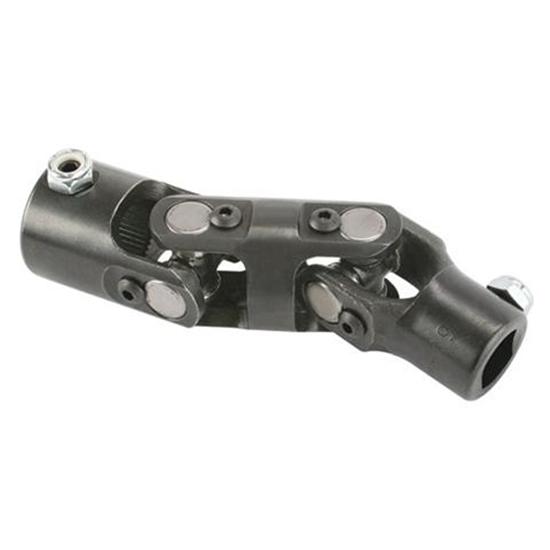

Sweet Mfg. Double Steering U-Joint, 1 DD to 3/4 DD, IDIDIT/Flaming River
Sweet Mfg. Double Steering U-Joint, 1 DD to 3/4 DD, IDIDIT/Flaming River

Click image to enlarge

Speeday Motors Logo
X
Sweet Mfg. Double Steering U-Joint, 1 DD to 3/4 DD, IDIDIT/Flaming River

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Application


Item Details

IDIDIT, Flaming River
1" Double D

You may also be interested in:

Sweet Mfg Steering U-Joint, 1 Inch DD, 3/4 Round, IDIDIT/Flaming River Column


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have a 3/4" round weld-on end.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. Double Steering U-Joint, 1 Inch-48 Spline to 3/4 Inch Round, GM Column


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

  • Overall length is 5-1/2”
  • O.D. at ends is 1.12”
  • O.D. in the middle is 1.476”
  • O.D. at caps is 1.350”
  • O.D. at cap retainer screws is 1.545”
  • Length of center section is 2-3/4”
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.



Steering Shaft, 3/4 Inch O.D. Double D, 4-16 Inch Lengths, Steel


This steering shaft is 3/4" O.D DD. This steering shaft also has a 1.00" long "D" design on each end.

This steering shaft entails:

  • 1018 Steel
  • Weld on
  • Excellent for steering shafts or other uses
  • Order desired length

NOTE: This DD shaft is only milled with flats on both ends for 1" of length of the shaft. It is not milled the entire length of the shaft and therefore, can not be cut to length unless it is going to be welded to a 3/4" round or has new flats milled into the end. Please see Flaming River DD shaft if fully machined DD shaft is required.

3/4 O.D. Solid Steel Steering Shaft


Speedways steering shaft is made for you to cut-to-fit. This steering shaft entails:

  •  3/4" O.D.
  • 1018 solid steel steering shaft
  • Available in 24", 36", 48", 60" and 72" lengths



Steer Shaft Application Chart

Sweet Mfg. Double Steering U-Joint, 1 DD to 3/4 Round, IDIDIT/Flaming River


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

  • Overall length is 5-1/2”
  • O.D. at ends is 1.12”
  • O.D. in the middle is 1.476”
  • O.D. at caps is 1.350”
  • O.D. at cap retainer screws is 1.545”
  • Length of center section is 2-3/4”
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Polished Stainless Steel 3/4 O.D. Double D Shaft


Steering shafts that are just plain looking look kind of silly with those shiny stainless steel U-joints. Our polished, stainless steel, double D steering shaft would be more compatible. We offer steering shafts in 18", 22", and 36" cut to fit lengths.



Sweet Mfg Chrome Double U-Joint, 3/4 Inch DD to 1 Inch DD, IDIDIT/Flaming River


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Steering Shaft, Fully Machined Double D Shaft, Raw 22 Inch


 Speedway now offers a steering shaft that is 3/4" DD machined the entire length of the shaft. This makes it easier to set up your steering. The carbon steel steering shaft come in 22".
