Sweet Mfg. 405-10310 Collapsible Steering Column, 22-1/2 - 32 Inch

Specs
Overall Length:
32.00
Sold in Quantity:
Each
MFG. Part #:
405-10310
Shifter Location:
Floor
Column Tilt:
Yes
Key Location:
Column
Collapsible:
Yes

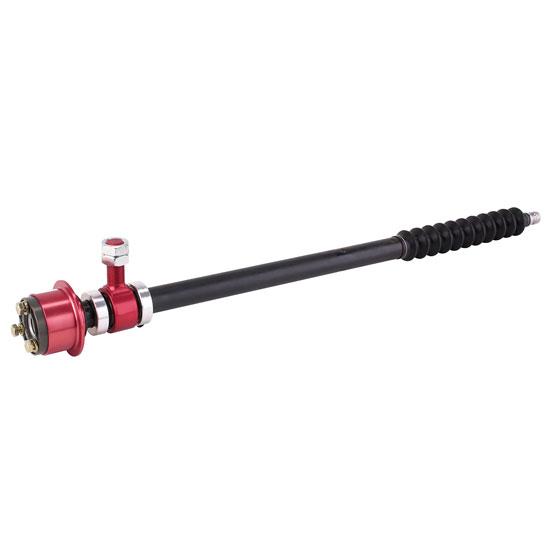

Sweet Mfg. 405-10310 Collapsible Steering Column, 22-1/2 - 32 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

If you have ever crashed hard you know the steering column can leave a big dent in your chest. Sweet Mfg. collapsible steering columns are not only safer but much easier to install. Includes easy installation steering wheel disconnect and 3/4" mounding rod end.

Adjustable from 22-1/2" to 32" in length. Requires 3/4" 20-spline U-joint or coupler.

Specs

  • 22 ½ to 32” column measured from the end of the shaft to the base of the quick release hub
  • Quick release hub adds an additional 2” to the overall length
  • O.D. of the main body is 1.125"
  • O.D. of the bottom shaft is .750 and 20 spline
  • Splined end accepts a variety of U-joint for attachment to your steering shaft or gear
  • O.D. of the main hub sleeve is 2.525”
  • O.D. of the hub sleeve flange is 3.17”
  • Centerline of column to end of threads on ¾” heim mount is 3”
  • Heim mount is adjustable forward/rearward to suit customers mounting requirements

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

Which quick release steering hub is with this? Is it the splined type, similar to 91032858, or the hex type, similar to 8352702017? Thanks

Noonan66
Lincoln, NE, USA
March 20, 2015

Which quick release steering hub is with this? Is it the splined type, similar to 91032858, or the hex type, similar to 8352702017? Thanks

Answers

March 20, 2015
EricM
This column has a splined rim style quick release such as 91032278.
1 answers

Does this come WITH the steering wheel quick disconnect?

eflachbart
Vermont
July 28, 2014

Does this come WITH the steering wheel quick disconnect?

Answers

July 29, 2014
Travisp
This column includes the steering wheel disconnect.
1 answers

could I get this with the 6-bolt disconnect for a momo wheel? If so, what would the price difference be?

June 23, 2011

could I get this with the 6-bolt disconnect for a momo wheel? If so, what would the price difference be?

Answers

June 24, 2011
Jason
Sorry, this is only available with 3 bolt quick release
