Sweet Mfg Chrome U-Joint, 5/8-36 Spline to 3/4 DD, Vega, Corvair, GM

SAME DAY SHIPPING! Order within the next 10 hours 23 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Length:
3.75
Sold in Quantity:
Each
Finish:
Chrome
Outside Diameter:
1.125
End #1:
3/4 inch DD
Spline OD:
.625
Spline Count:
36
MFG. Part #:
401-61930
Set Screw Included:
Yes
Max Operating Angle:
30

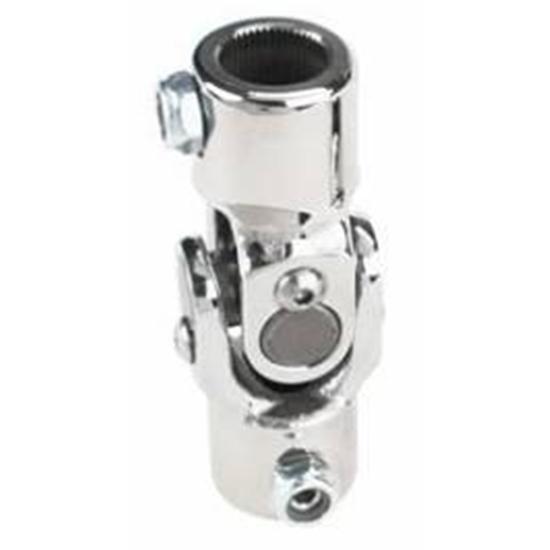

Sweet Mfg Chrome U-Joint, 5/8-36 Spline to 3/4 DD, Vega, Corvair, GM

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature a double D end to make use of the double D shaft.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
  • 5/8"-36 Spline
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

O.D. is 1-1/8" and total length is 3-3/4".
Vega, Corvair, GM Rack

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2

Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.
